The 2nd method - REST API client

Overview

• This is the second way of communication:
  • The standard REST API calls of application domain services using HTTP methods
• Each backend service has REST API endpoints
  • REST API is defined by OPEN API 3.0 standard
    • Supported by 3rd-party tools like AutoRest, NSwag, editor.swagger.io etc
  • The most common endpoints supported by C# Connector nuget package

See more: OIDC/OAuth2 authentication

• Example - how to consume REST API:
  • Use HTTP client to call API endpoint you have chosen
  • See in example:
    • Controllers/Examples12Controller.cs
      • Example2_GetOrders_Using_3rdPartySupportOnly
      • Example2_GetOrders_Using_StandardConnector

Get orders using self-made connector based on Microsoft .NET and 3rd-party packages

• The demonstration example how to integrate with other backend service running on AVAplace
• Important: This code doesn't fully cover all requirements for more complex integration scenarios
• See in example:
  • CustomConnectors/Example2_SelfMade3rdPartyBasedOrderClient.cs
  • Controllers/Examples12Controller.cs
    • Example2_GetOrders_Using_3rdPartySupportOnly

Usage example:

private readonly IServiceProvider _serviceProvider;
private readonly SsoAuthOptions _authOptions;
private readonly Uri _authBaseUri;
private readonly Uri _apiBaseUri;

/// <summary>
/// Example of common rest api call against platform with manual token handling.
/// This example isn't recommended to be used in production environment, it's only for demonstration purposes.
/// The example uses particular endpoint of PlatformStore.Order domain which is well-known with partner's application.
/// </summary>
public async Task<string> GetOrdersAsync(string tenantId, string orderAccessType, int offset = 0, int limit = 100, CancellationToken ct = default)
{
    if (string.IsNullOrEmpty(orderAccessType)) throw new ArgumentNullException(nameof(orderAccessType));
    ct.ThrowIfCancellationRequested();

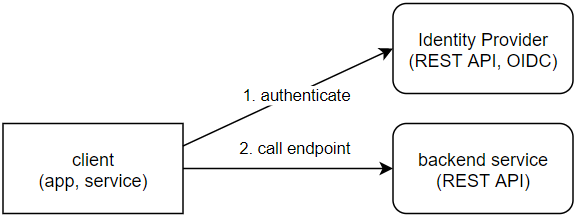

    // *** 1. authenticate ***
    //try get access token from "Authorization" header of HTTP request
    var httpContextAccessor = _serviceProvider.GetService<IHttpContextAccessor>();
    string headerValue = httpContextAccessor?.HttpContext?.Request?.Headers[HeaderNames.Authorization];
    AuthenticationHeaderValue authHeader;
    if (!string.IsNullOrEmpty(headerValue))
    {
        authHeader = AuthenticationHeaderValue.Parse(headerValue);
    }
    else
    {
        //create access token by IdentityProvider using clientId and clientSecret (OIDC)
        var authClient = new HttpClient { BaseAddress = _authBaseUri };

        // - get discovery document
        var discoveryRequest = new DiscoveryDocumentRequest { Address = _authOptions.Authority };
        var discoveryResponse = await authClient.GetDiscoveryDocumentAsync(discoveryRequest, cancellationToken: ct);
        if (discoveryResponse.IsError)
        {
            throw new InvalidOperationException($"'{discoveryResponse.Error}' - '{discoveryResponse.ErrorType}'", discoveryResponse.Exception);
        }

        // - get access token using client credentials
        var tokenRequest = new ClientCredentialsTokenRequest
        {
            Address = discoveryResponse.TokenEndpoint,
            ClientId = _authOptions.ClientId,
            ClientSecret = _authOptions.ClientSecret,
            Scope = _authOptions.Audience
        };

        // - append requested tenantId (optional)
        if (!string.IsNullOrEmpty(tenantId))
        {
            tokenRequest.Parameters.Add("tid", tenantId);
        }

        // - call REST API endpoint of ASOL.IdentityProvider service
        var tokenResponse = await authClient.RequestClientCredentialsTokenAsync(tokenRequest, ct);
        if (tokenResponse.IsError)
        {
            throw new InvalidOperationException($"'{tokenResponse.Error}' - '{tokenResponse.ErrorDescription}'", discoveryResponse.Exception);
        }

        authHeader = new AuthenticationHeaderValue(tokenResponse.TokenType, tokenResponse.AccessToken);
    }

    // *** 2. call endpoint ***
    //call REST API endpoint of ASOL.PlatformStore.Order service
    var resource = "api/v1/Order";
    var apiClient = new FluentClient(_apiBaseUri);
    var request = apiClient.GetAsync(resource)
        .WithAuthentication(authHeader.Scheme, authHeader.Parameter)
        .WithCancellationToken(ct)
        .WithArgument("orderAccessType", orderAccessType)
        .WithArgument("offset", offset)
        .WithArgument("limit", limit);

    //return CollectionResult<OrderModel> contract as serialized JSON string
    var result = await request.AsString();
    return result;
}

Get orders using standard connector using ASOL.PlatformStore.Order.Connector package

• The most comfortable way to integrate with other backend service running on AVAplace
• The most preferred way for production environment
• See in example:
  • Controllers/Examples12Controller.cs
    • Example2_GetOrders_Using_StandardConnector

Registration example (Startup.cs):

services.Configure<SsoAuthOptions>(configuration.GetSection(SsoAuthOptions.DefaultSectionName));
services.AddStandardApiTokenProviders();

services.Configure<PlatformStoreOrderClientOptions>(Configuration.GetSection(nameof(PlatformStoreOrderClientOptions)));
services.AddPlatformStoreOrderClient();

Usage example:

using ASOL.PlatformStore.Order.Connector;

//get client instance via dependency injection
var orderClient = _serviceProvider.GetRequiredService<IPlatformStoreOrderClient>();

//prepare query parameters
var orderFilter = new OrderFilter { OrderAccessType = OrderAccessType.Customer };

// *** 1. authenticate *** (already included in api call)
// *** 2. call endpoint ***
//get all orders via REST API client (using standard connector of ASOL.PlatformStore.Order service)
var ordersResult = await orderClient.GetOrdersAsync(orderFilter, default);
