Application's deployment to AVAplace

Start of building the application​

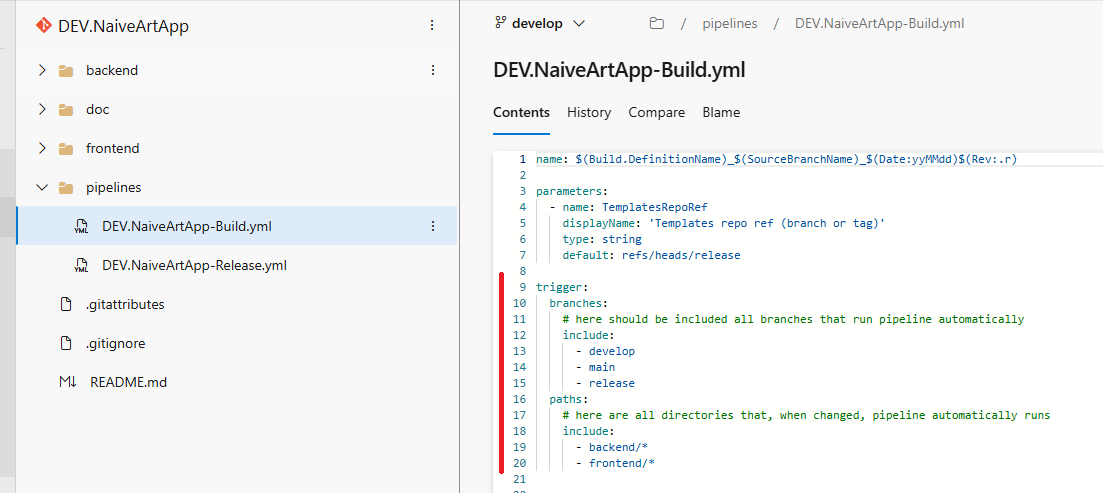

Due to defined triggers inside build pipeline, with every change in specified branches and paths build pipeline runs.

images/triggers.png

Permission of first run​

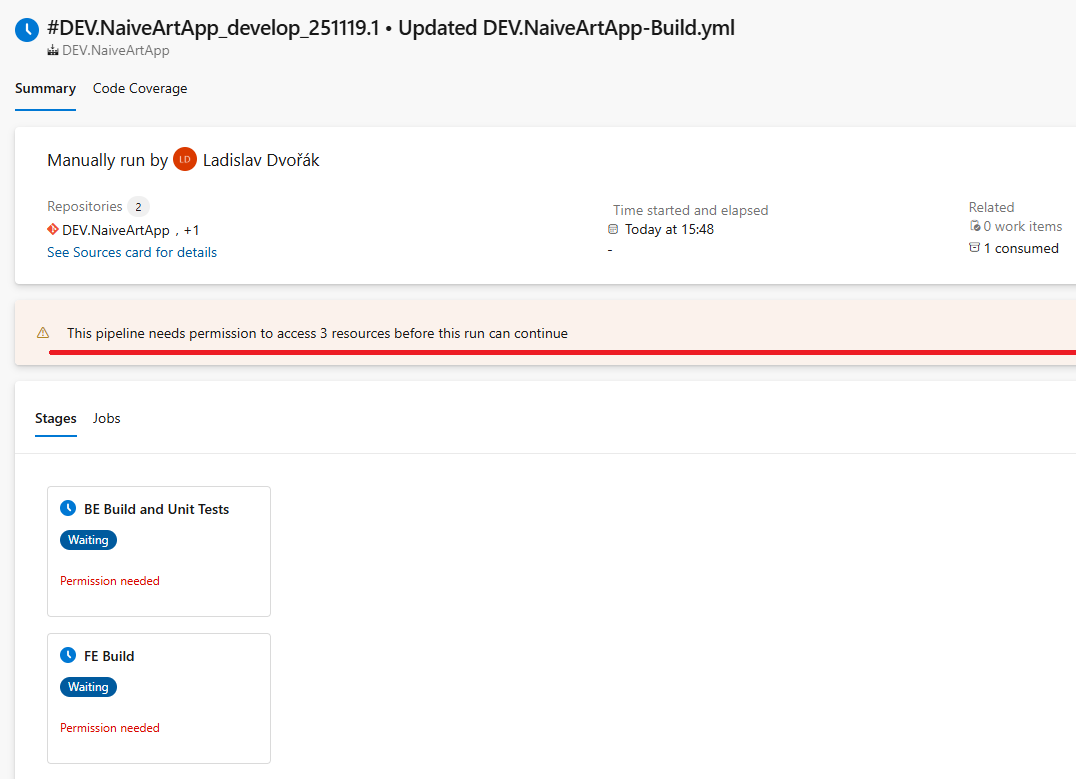

If this message appears, click the View button at the end of the displayed message to permit the first access to the build pipeline.

images/pipeline_permission.png

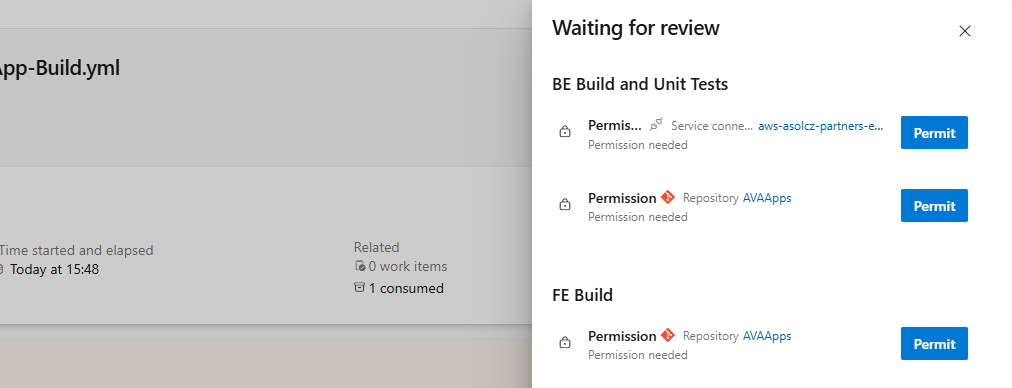

Afterwards, click on all occurrences of the Permit button. This will allows pipeline use every needed resource.

images/waiting_for_review.png

Following these permits, pipeline runs.

Status of run​

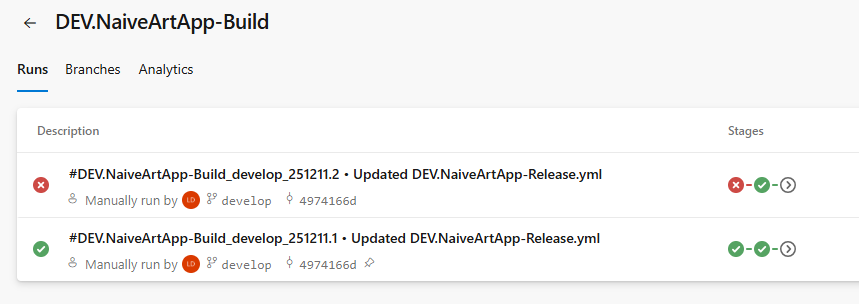

  • When the pipeline finishes successfully, pipeline is marked in green (second pipeline in the picture).
  • When any of the steps does not finish successfully, pipeline is marked in red (as shown in the first row of the picture).

images/pipelines_status.png

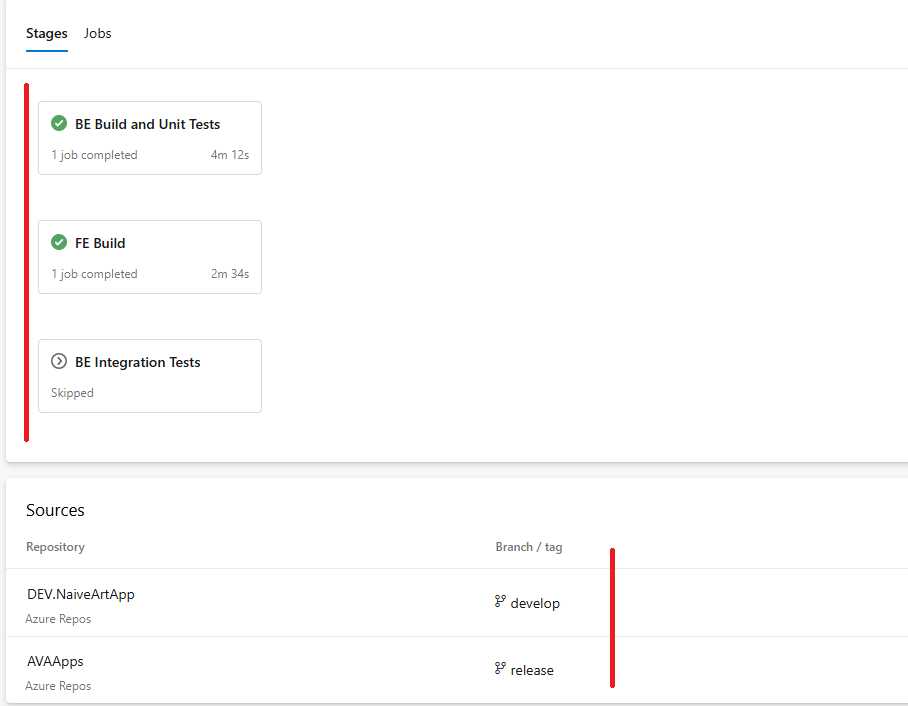

To get more detailed information about specific run, click on the name of the run (that's what starts with #DEV... in the picture.).

Inside you can find out:

  • detailed information about the status of individual steps (click on specific step shows log of this step)
  • also branches used for build (bottom of the picture)

images/pipeline_steps_status.png

Deployment of the application​

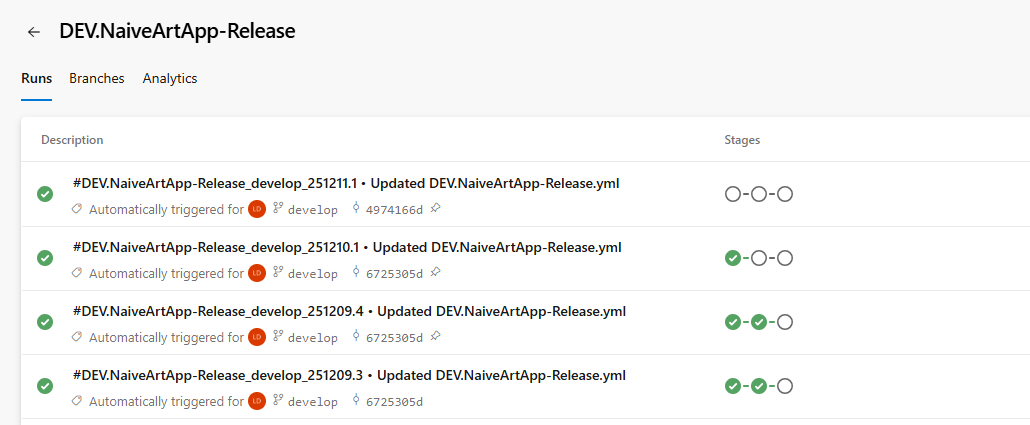

After the build pipeline successfully finishes, release pipeline runs automatically.

Release pipeline is used for deployment of the applicattion on individual stages.

images/list_release_pipelines.png

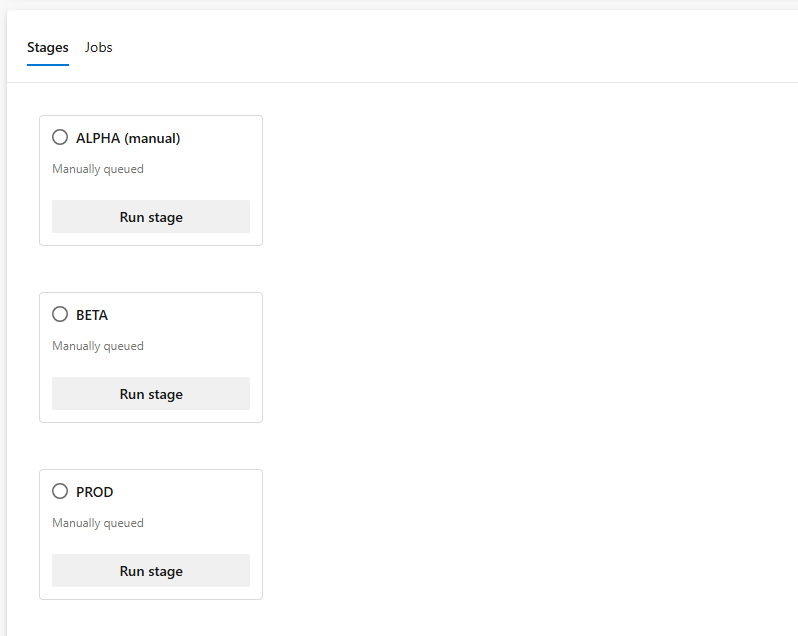

Every run of release pipeline, contains inside list of the stages where application can be deployed. There you select stage for deploy.

images/stages.png

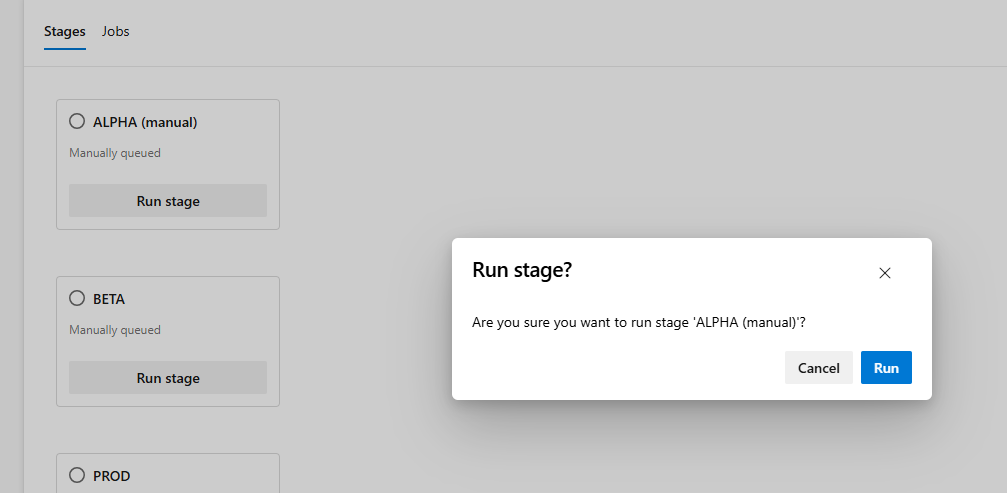

After click on Run stage and subsequent confirmation, application starts deployment to specific stage.

images/confirmation_deployment.png

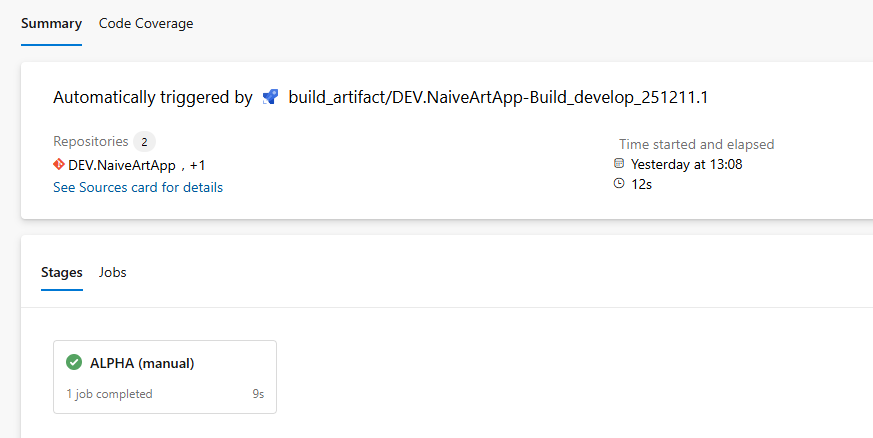

  • If everything went smoothly on the partner's side, status of the stage, is in green.
  • If not, status is in red and clicking on a specific environment, you can obtain more details about the error.

images/deployed_to_alpha.png

Check result of the application deployment​

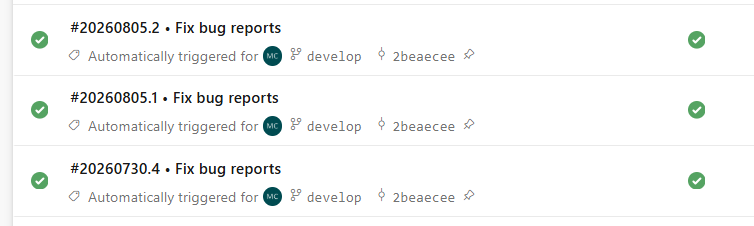

Result pipelines are trigger after deployment into AVA cloud and their color shows status of specific deployment (green is successful and red is failed).

images/list_of_result_pipelines.png

There is always one run for frontend and another run for backend. For more detailed information about the deployment, you need to go inside the pipeline. And there click on the Release result field.

images/release_result.png

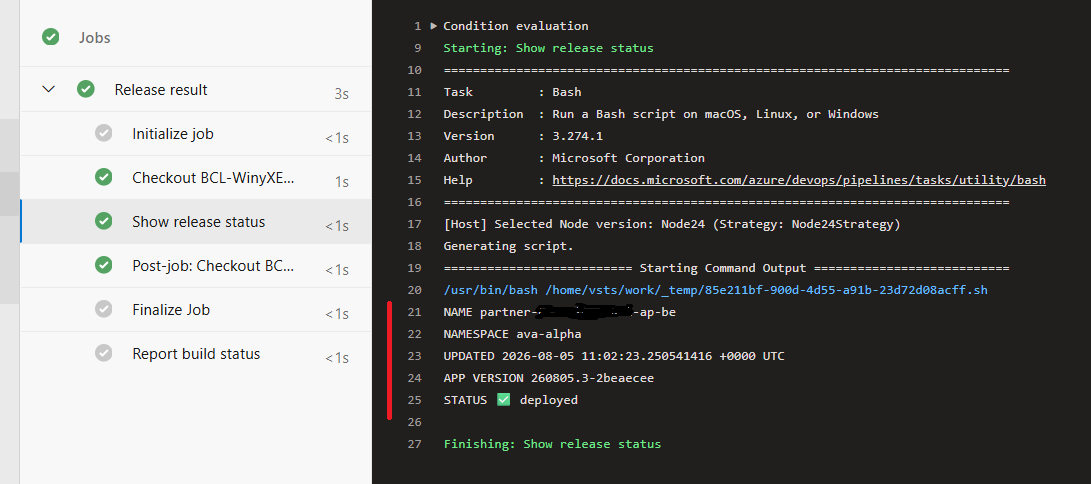

And in the Show release status you will see all needed information about deployment.

images/show_release_status.png

NAME suffix indicates if BE or FE was deployed
NAMESPACE determines stage where it was deployed
STATUS shows surprisingly status :)
