Prepare pipelines inside repository

Overview

To deploy the application into AVA development or production environment, the application must first be built in partner's Azure DevOps organization and subsequently published to container registry. Therefore pipelines must be arranged inside the project and repositories.

Load predefined templates

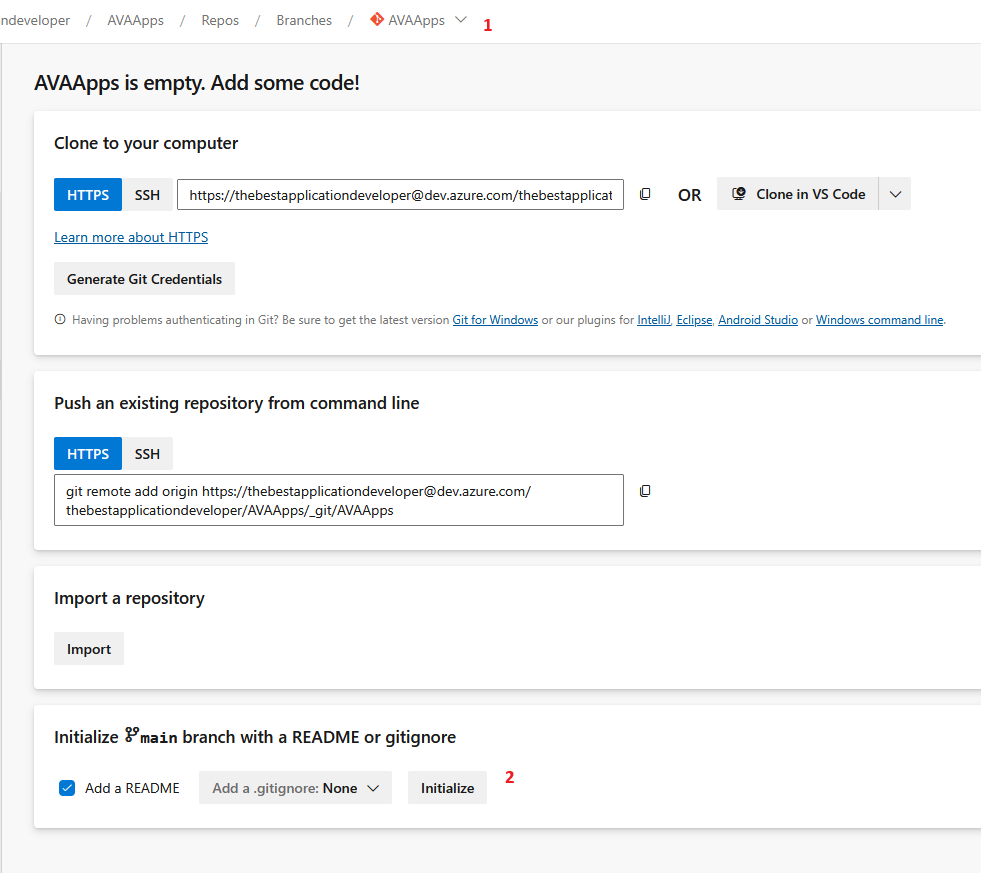

Firstly, switch to AVAApps repository ( step in the picture marked as 1 ) and initialize it ( step marked as 2 ). AVAApps repository should be created at the same time when project is created. If not, create it manually. This repo stores templates of pipelines.

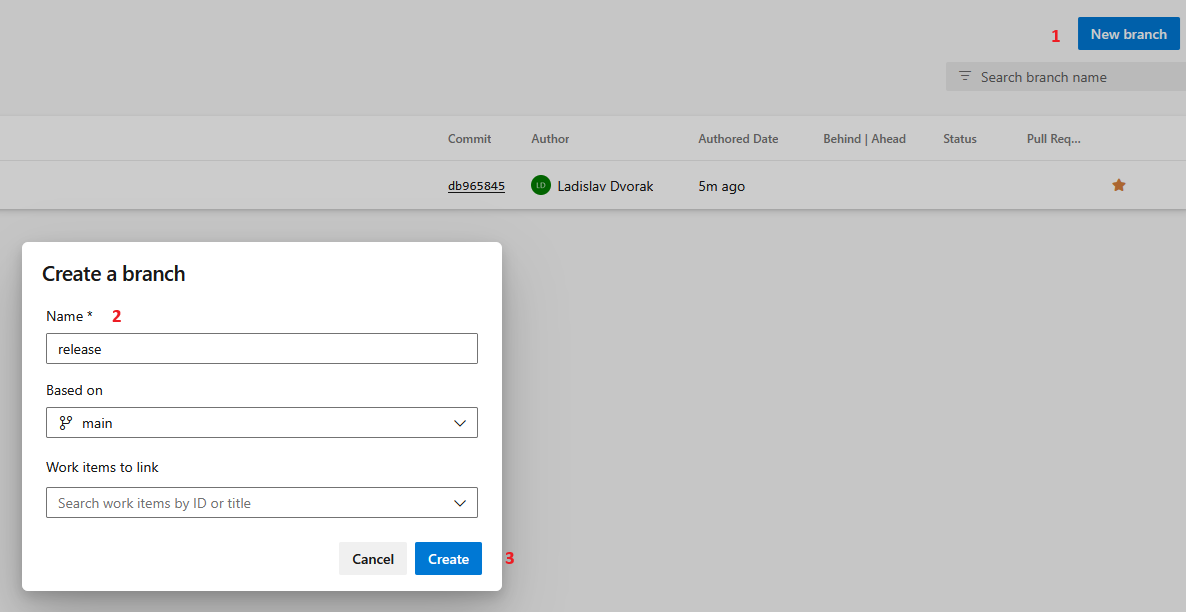

Then create there release branch. Click on New branch button, fill release into Name field and in the end click on Create button.

Click on newly created release branch, what moves you to files repozitory, into release branch.

There extract the pipeline templates contained in the pipeline-templates.zip file.

The recommended methods for uploading pipeline templates into repository are either the Git command line or an IDE, such as Visual Studio.

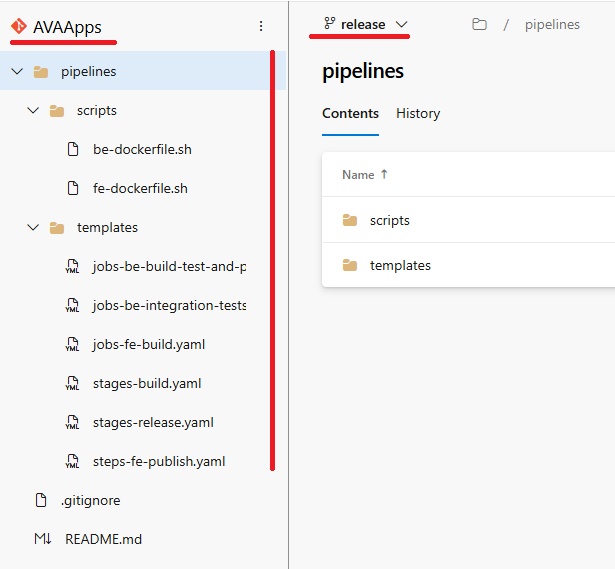

The final structure of the template pipelines should match the picture below. Please ensure that the highlighted sections are identical to those in the image.

All YAML files added up to this step are templates and must remain unchanged, exactly as they were downloaded from Asseco's link.

Build pipeline setup

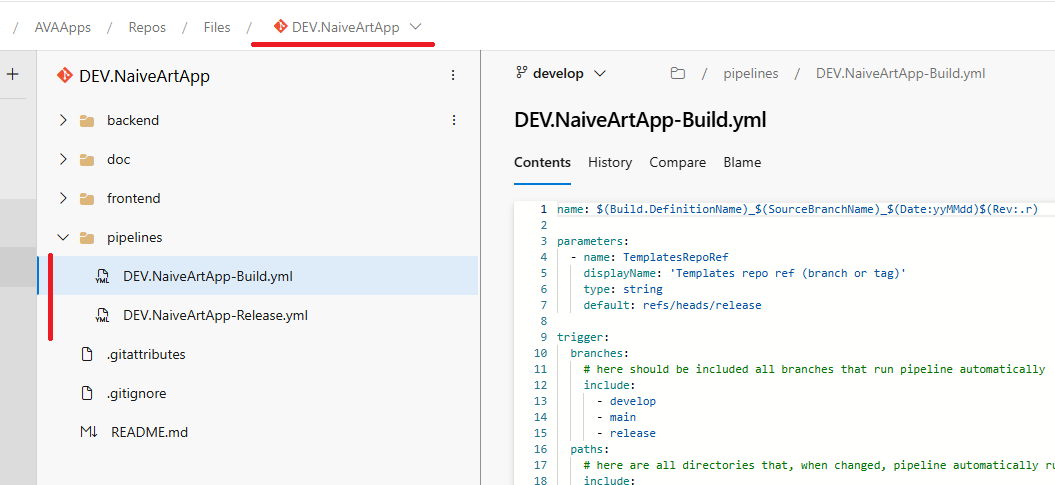

The build pipeline name is bound with application repository. So we switch to application repository, where we imported our application. And we create there two yaml files for pipelines, under pipelines directory.

First file should follow the naming pattern NameOfRepository-Build.yml.

Copy pipeline content from example list below into /pipelines folder of the application repository and edit it according your settings, especially ApiName and ApiProjectRelativePath parameters.

Pipeline should be copied to both 2 branches, in develop as well as in release.

/pipelines/NameOfRepository-Build.yml

name: $(Build.DefinitionName)_$(SourceBranchName)_$(Date:yyMMdd)$(Rev:.r)

trigger:
  branches:
    # here should be included all branches that run pipeline automatically
    include:
      - develop
      - release
  paths:
    # here are all directories that, when changed, pipeline automatically runs
    include:
      - backend/*
      - frontend/*

resources:
  repositories:
    - repository: templates-repo
      type: git
      name: AVAApps/AVAApps
      ref: refs/heads/release

stages:
  - template: pipelines/templates/stages-build.yaml@templates-repo
    parameters:
      # Name of application directory below backend folder
      # E.g., ASOLEU_DEV.NaiveArtApp.API
      ApiName: 'ASOLEU_DEV.NaiveArtApp.API'
      # Path to application .csproj file
      # E.g., backend/ASOLEU-DEV.NaiveArtApp.API/ASOLEU-DEV.NaiveArtApp.API.csproj
      ApiProjectRelativePath: 'backend/<ApiName parameter as specified above>/<ApiName parameter as specified above>.csproj'
      # Parameter enables/disables backend build
      BuildAndPublishBackend: true
      # Parameter enables/disables frontend build
      BuildAndPublishFrontend: true
      # Selected .NET version for build
      DotNetVersion: '8.0'
      # Frontend's url suffix, specific for application
      FrontendBasePath: '/apps/asoleu-dev/naiveartapp'
      # Sets path to NuGet.config in repository
      NugetConfigPath: 'backend/NuGet.config'
      # This parameter enables or disables run of integration test inside a pipeline
      # When this parameter is omitted, value of this parameter is set to true
      # Default path for integration tests is 'backend/**/*.IntegrationTests.csproj'
      RunIntegrationTests: false
      # This parameter enables or disables run of integration test inside a pipeline
      # When this parameter is omitted, value of this parameter is set to true
      # Default path for unit tests is 'backend/**/*.Tests.csproj'
      RunUnitTests: false

The parameters section of the pipeline is used to define parameters essential for building the application.

Release pipeline setup

The purpose of release pipeline is to deploy application to AVAplace environment.

The second file for release pipeline follows the naming pattern NameOfRepository-Release.yml.

Copy release pipeline from example listed below into the /pipelines folder of the application repository and edit it according your settings, especially resources/pipelines/source variable.

This pipeline should be also copied to both 2 branches, develop as well as to release.

/pipelines/NameOfRepository-Release.yml

name: $(Build.DefinitionName)_$(Build.SourceBranchName)_$(Date:yyMMdd)$(Rev:.r)

trigger: none

resources:
  pipelines:
    - pipeline: build_artifact
      source: NameOfRepository-Build
      trigger:
        branches:
          include:
            - develop
            - main
            - release
  repositories:
    - repository: templates-repo
      type: git
      name: AVAApps/AVAApps
      ref: refs/heads/release

stages:
  - template: pipelines/templates/stages-release.yaml@templates-repo
    parameters:
      # This parameter enables/disables backend deployment
      BuildAndPublishBackend: true
      # This parameter enables/disables frontend deployment
      BuildAndPublishFrontend: true

Result pipeline setup

The purpose of result pipeline is to show result of the application's deployment to AVAplace stages.

This file follows the naming pattern NameOfRepository-Result.yml.

Copy result pipeline from example listed below into the /pipelines folder of the application repository and edit it according your settings, especially substitute jobs/parameters field with resouces/webhooks/webhook value.

Also This pipeline should be copied to both 2 branches, develop as well as to release.

/pipelines/NameOfRepository-Result.yml

trigger: none

resources:
  webhooks:
    # This value is obtained from Asseco Solutions, described in documentation
    # specifically in part Prepare Azure DevOps to build application / step Create Incoming webhook service connection for result pipeline
    # Please substitute this value also in parameters' area at the end of this file
    - webhook: OrganizationNameOfRepositoryWebhookResult
      # The second value from the same place
      connection: OrganizationNameOfRepositoryServiceResult
  repositories:
    - repository: templates-repo
      type: git
      name: AVAApps/AVAApps
      ref: refs/heads/release

jobs:
  - template: pipelines/templates/jobs-release-result.yaml@templates-repo
    parameters:
      Name: ${{ parameters.OrganizationNameOfRepositoryWebhookResult.name }}
      Namespace: ${{ parameters.OrganizationNameOfRepositoryWebhookResult.namespace }}
      Updated: ${{ parameters.OrganizationNameOfRepositoryWebhookResult.updated }}
      Status: ${{ parameters.OrganizationNameOfRepositoryWebhookResult.status }}
      AppVersion: ${{ parameters.OrganizationNameOfRepositoryWebhookResult.app_version }}

When all pipelines are in the repository, let's continue with step Build application and publish it to container registry.
