OnPremise agent registration - overview

On-premise agent of external application (e.g. ERP IS) is installed in the customer's site.
On-premise agent of external application (e.g. ERP IS) is registered on AVA platform per customer's tenant.

This article provides general information how to register any on-premise agent on AVA platform.
The detailed instructions for installation of specific on-premise agent is in the official documentation of your external application (e.g. ERP IS).

Registration using Connector Catalogue frontend application

Prerequisites:

• valid license for Connector Catalogue application
• Admin app role ASOLEU-CONCATAPP-AP-.Admin or TenantAdmin platform role

Register and configure connector

Use Connector Management application to register and configure connector. Connector represents the business level configuration. Each connector can have the single registration per tenant.

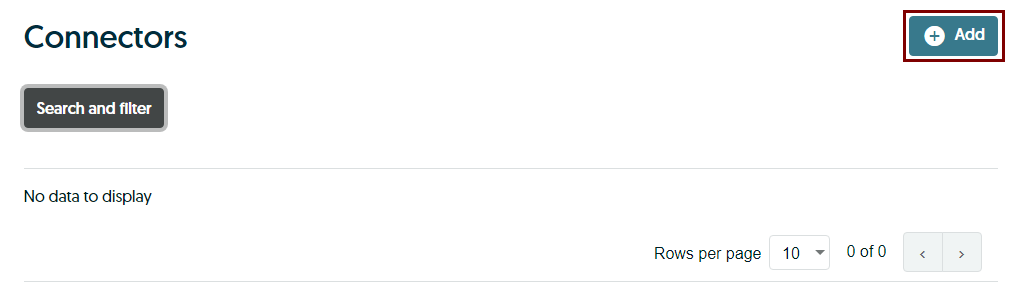

Add new connector if a requested connector doesn't exist yet

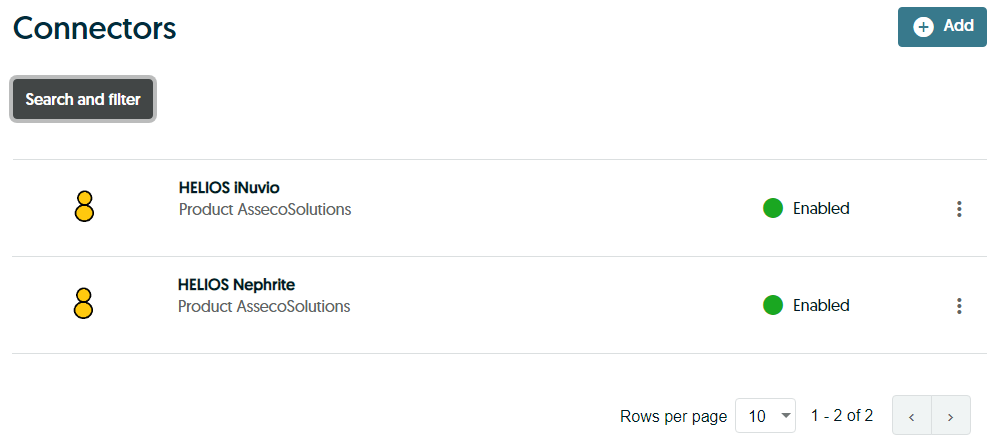

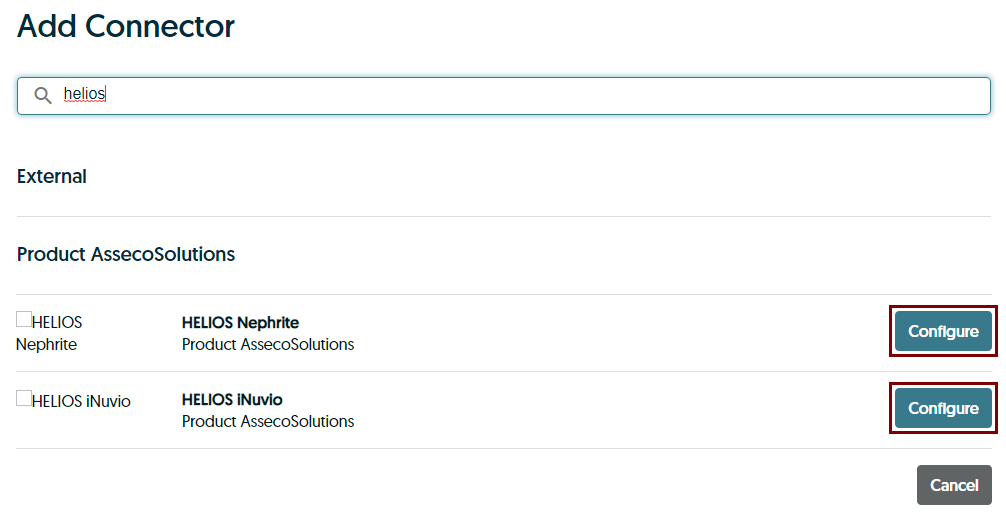

Pick the requested connector and configure with Configure button

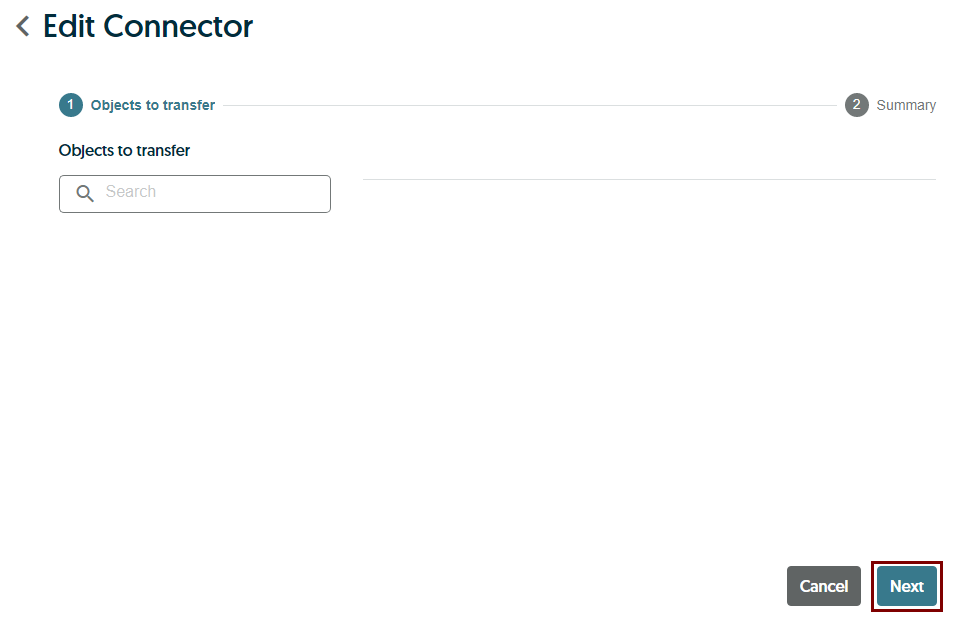

Object to transfer aren't defined, so continue with Next button

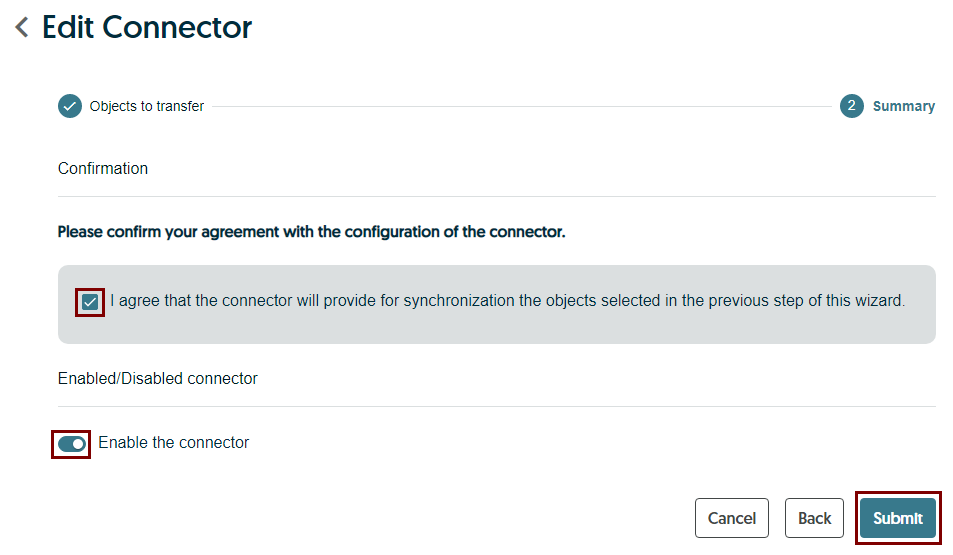

Enable connector and submit configuration with Submit button

Register and configure on-premise agent

Use Connector Management application to register and configure on-premise agents. Agent represents the technical level configuration. Each agent is associated to the specific connector and can have the multiple registrations per tenant. Each agent typically represents a specific on-premise installation of external application (e.g. ERP IS).

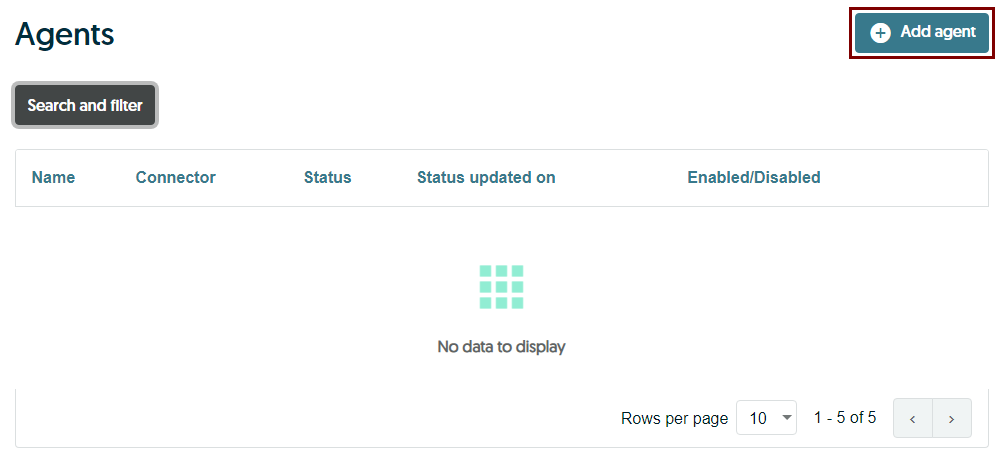

Add new agent if a requested agent doesn't exist yet

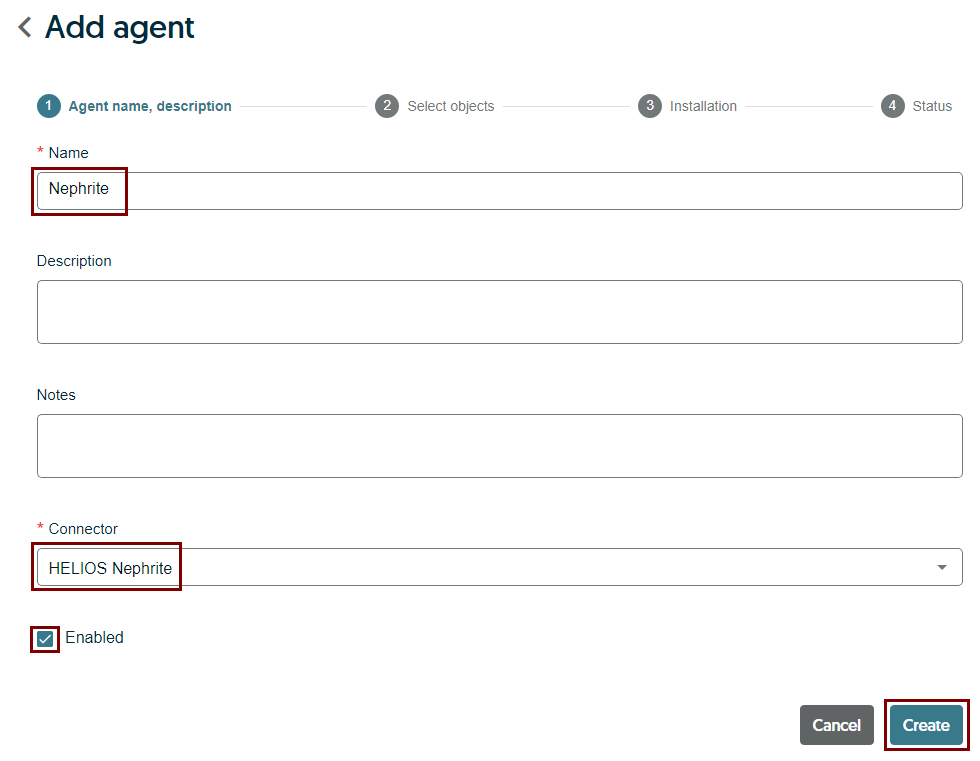

Fill the short name to describe agent, assign to the requested connector, enable agent and continue with Create button

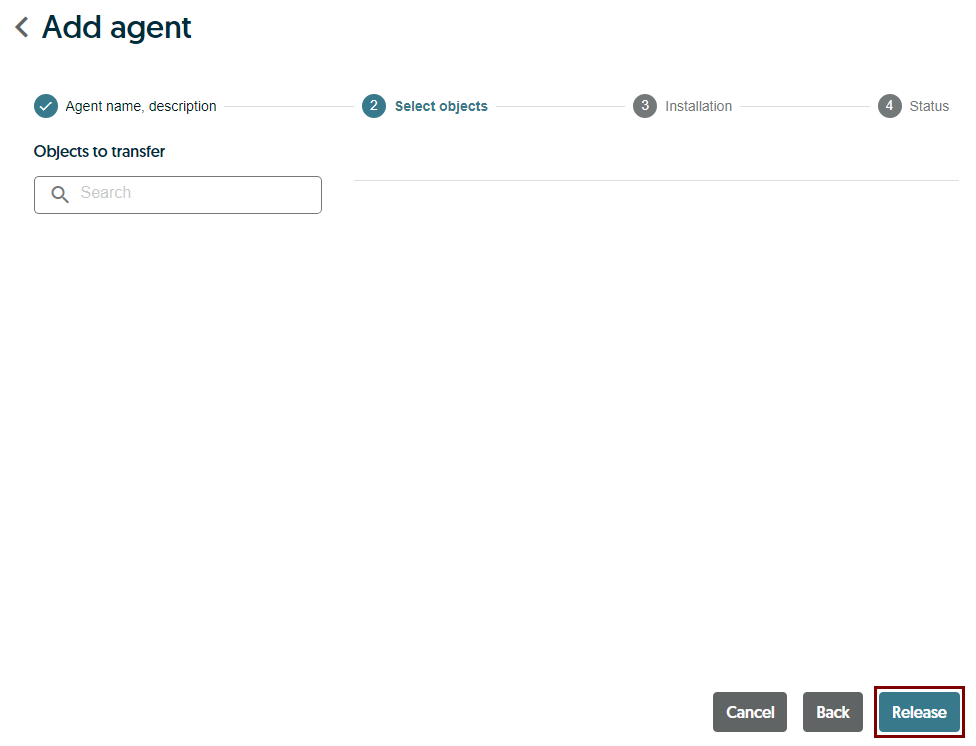

Object to transfer aren't defined, so continue with Release button

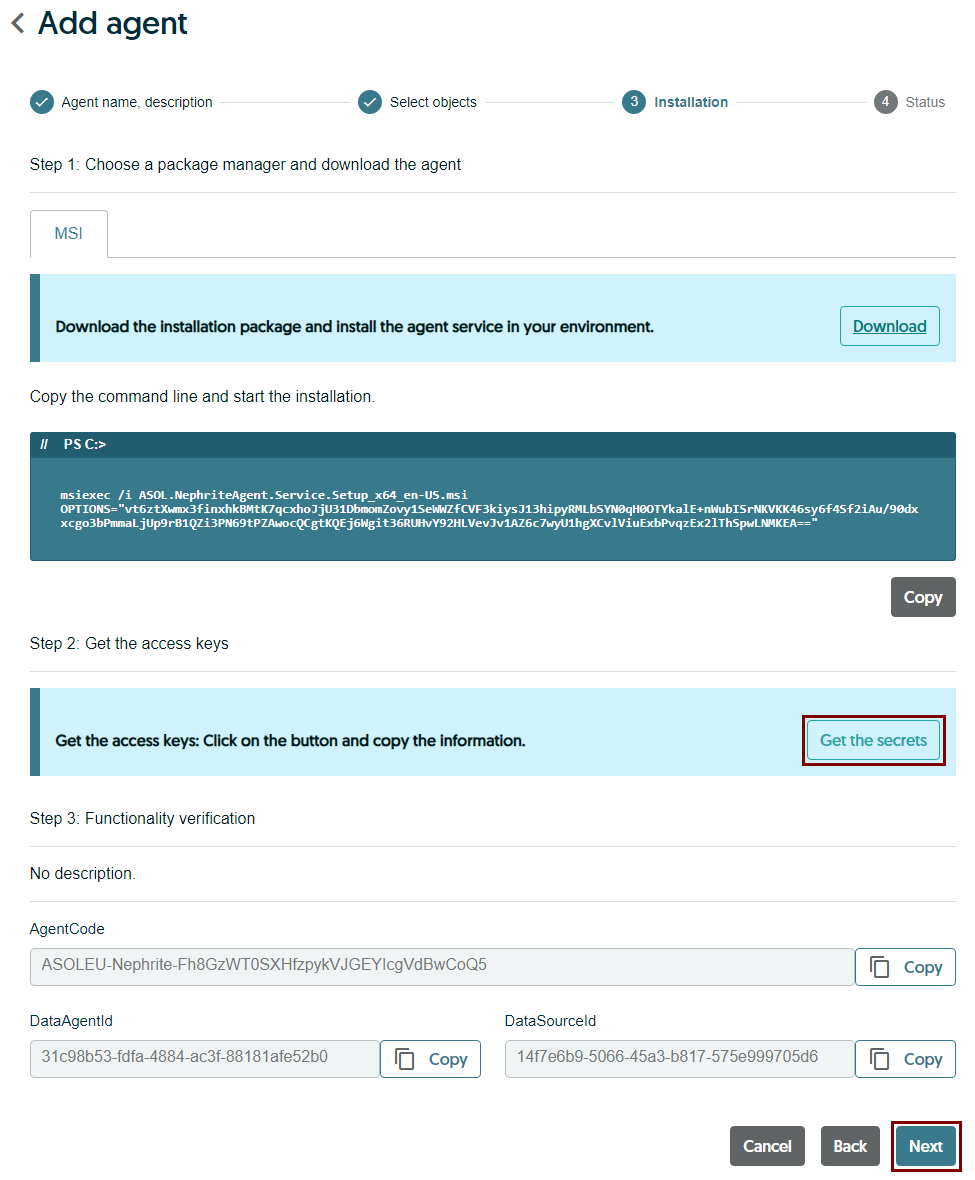

Use registration parameters to configure installation program of on-premise agent

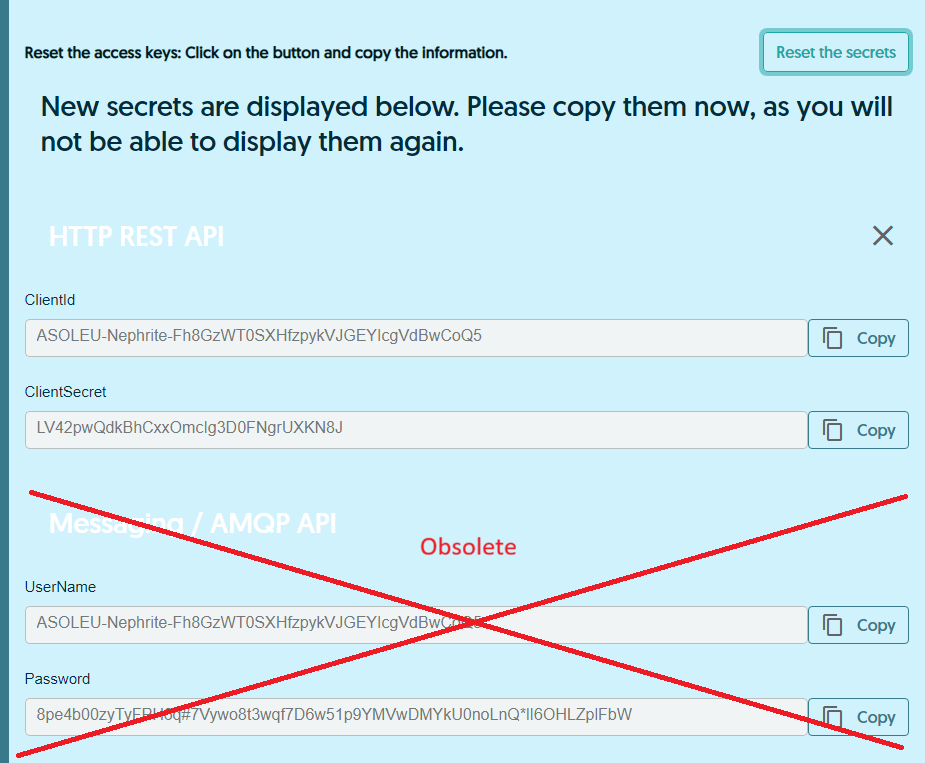

Generate or reset secrets to configure credentials of on-premise agent Important: Reset secrets invalidates the existing secrets and generates new ones. It breaks any established communication between already installed agent and AVAspace. So, be careful.

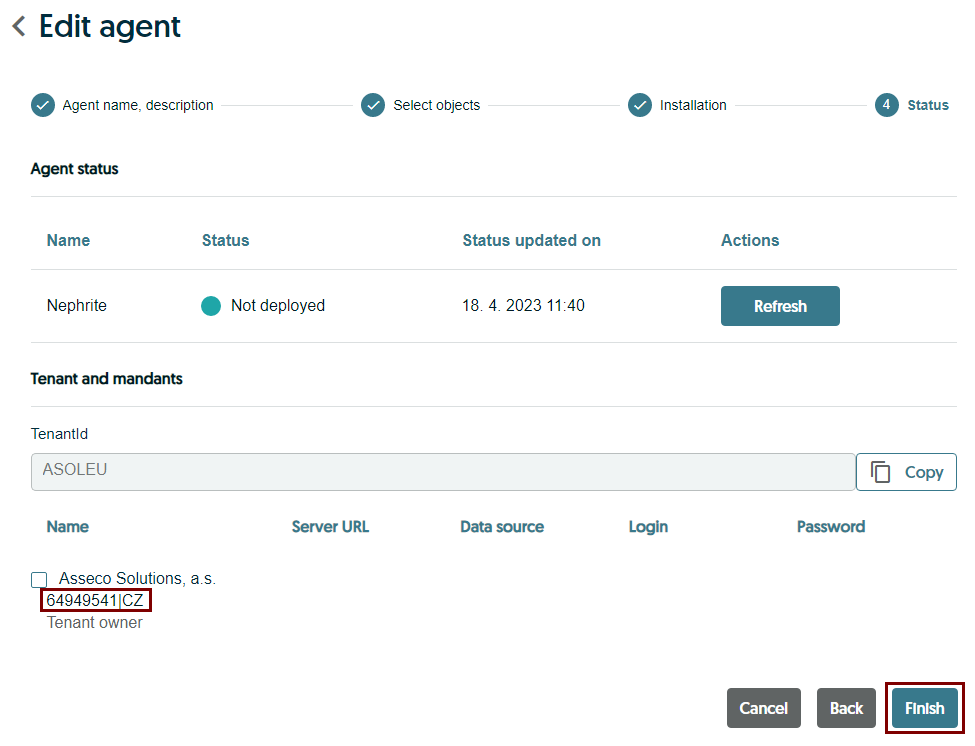

Configure tenant and mandant organizations of on-premise agent

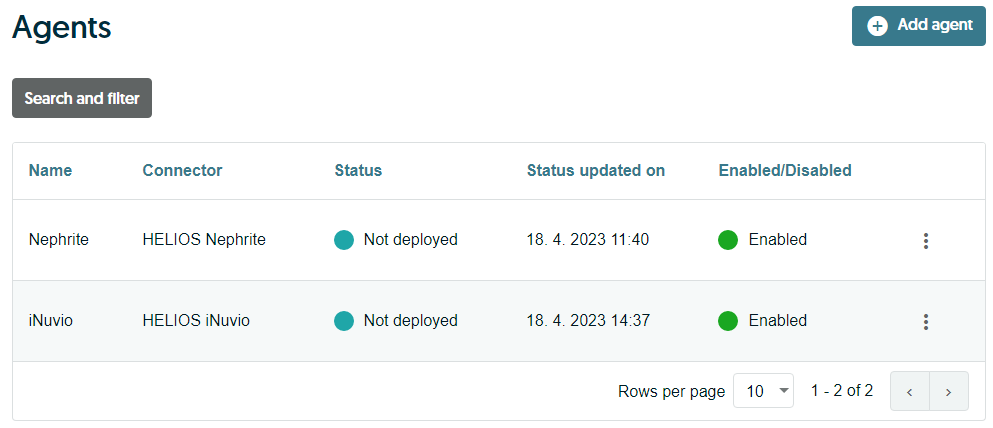

Use Refresh button to check agent status (if supported by agent) when installation process is completed

Registration using Connector Catalogue backend service

Prerequisites:

• Admin app role ASOLEU-CONCATAPP-AP-.Admin or TenantAdmin platform role

Connector Catalogue - app url: <platform base url>/api/asol/cc/

Identity Provider - app url: <platform base url>/api/asol/idp/

Verify tenant and mandant organizations when user account is used

Important: User account is using selected tenant during authetication process, you have to ensure that security token is using the tenant context as expected to register on-premise agent in the right tenant context

GET /api/v1/UserTenants

Returns a list of tenants. The IsSelected flag identifies the selected (current) tenant. The current tenant also contains an Organizations list representing mandants.

• example: <platform base url>/api/asol/idp/api/v1/UserTenants

Check if requested connector exists and register a new one when not

Get provider identifier and metadata using product code

Note: provider metadata are shared across all tenants

GET /api/v1/Providers/ByCode/{code}

Returns the provider metadata for the specified external application (e.g. ERP IS).

• examples:
  • <platform base url>/api/asol/cc/api/v1/Providers/ByCode/ASOLEU-GREENFTR-FE-
  • <platform base url>/api/asol/cc/api/v1/Providers/ByCode/ASOLEU-ORANGEFTR-FE-

Get connectors assigned to given provider

Note: Optionally you can include also not released or deleted connectors to get the complete info.

GET /api/v1/Connectors

Returns connectors assigned to the specified provider.

• examples:
  • .../api/asol/cc/api/v1/Connectors?ProviderId=7f234055-523c-46a4-a59d-d20c45bfb7b4
  • .../api/asol/cc/api/v1/Connectors?ProviderId=208f3400-398b-439c-bd07-6ee8b7b8a06e&IncludeUnreleased=true&IncludeDeleted=true

Create connector assigned to given provider and release

POST /api/v1/Connectors

Creates and returns a connector in an unreleased state.

{
  "providerId": "208f3400-398b-439c-bd07-6ee8b7b8a06e",
  "enabled": true
}

POST /api/v1/Connectors/{id}/Release

Releases the specified connector or does nothing if it has already been released.

Check if requested agent exists and register a new one when not

Note: Optionally you can include also not released or deleted agents to get the complete info.

Get agents assigned to given connector

GET /api/v1/Agents

Returns agents assigned to the specified connector.

• example: <platform base url>/api/asol/cc/api/v1/Agents?ConnectorId=05b69c72-7f15-4963-aeda-d265ba77daed

Get agent using agent code

GET /api/v1/Agents

Returns the agent matching the specified agent code.

• example: <platform base url>/api/asol/cc/api/v1/Agents?AgentCode=ASOLEU-DEV-fd9ad6b9-2f29-4c7a-9a3a-c7469e19b1ff-test-gc9FX2v3Le9yDyNODCjpipHPbMOJOaxU

Create agent assigned to given connector and release

POST /api/v1/Agents

Creates and returns an agent in an unreleased state.

{
  "connectorId": "05b69c72-7f15-4963-aeda-d265ba77daed",
  "name": "test",
  "enabled": true
}

POST /api/v1/Agents/{id}/Release

Releases the specified agent or does nothing if it has already been released.

Generate or reset secrets

Important: Reset secrets invalidates the existing secrets and generates new ones. It breaks any established communication between already installed agent and AVAspace. So, be careful.

POST /api/v1/Agents/{id}/ResetSecrets

Generates and returns new secrets for the specified agent.

Get agent details with registration parameters

GET /api/v1/Agents/{id}

Returns the details of the specified agent, including its registration parameters.

Update of agent custom code

A new property CustomCode has been added to the Agent entity, which represents user friendly unique identification of an on-premise application instance.

It is used for simple identification of an on-premise application instance in the Connector Catalogue and is further propagated into Data service.

This can be achieved by using the PATCH method on the agent endpoint.

PATCH /api/v1/Agents/{id}

Updates the specified agent using the provided JSON Patch document.

[
  { "op": "replace", "path": "/customCode", "value": "UniqueHeliosCustomCode" }
]

This endpoint patches the Agent via JSON Patch document (RFC 6902).
It also allows update other allowed properties of an agent without need to send a whole agent object.

Parameters

Name	Location	Type	Description
id	route	string (GUID)	ID of an agent
patchModel	body	JsonPatchDocument<AgentPatchModel>	JSON Patch list of operations

---

JSON Patch – overview

Every operation has a following keys:

Key	Description
op	Operation: add, remove, replace
path	Path to the property: /email, /address/street
value	New value (not required with remove)

---

Supported operations

op	Meaning	Example
add	Adds an item or property to the collection	{ "op": "add", "path": "/tags/-", "value": "new" }
remove	Removes item or property based on index	{ "op": "remove", "path": "/tags/2" }
replace	Replaces an existing value	{ "op": "replace", "path": "/status", "value": "Inactive" }

⚠️ When using replace, the property and its value must exist otherwise it will fail.
