Invoicing domain

Typical integration scenarios and datamodels in Invoicing domain.

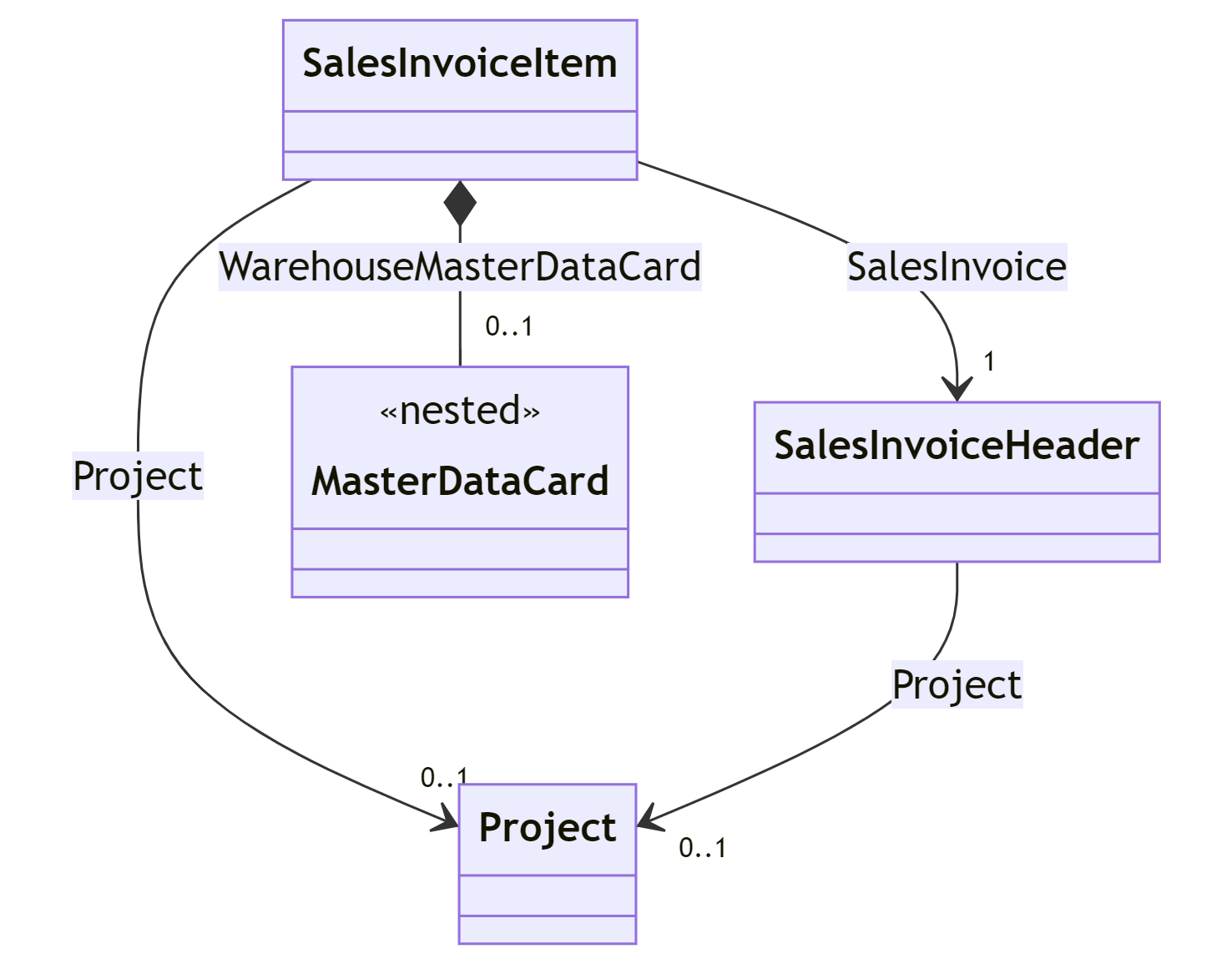

Sales Invoice Header and Sales Invoice Item​

Class diagram

  • description: dependencies between the invoice header issued and its items
  • typical source: external images/billing_salesinvoiceheader-salesinvoiceitem-project.png

Data models

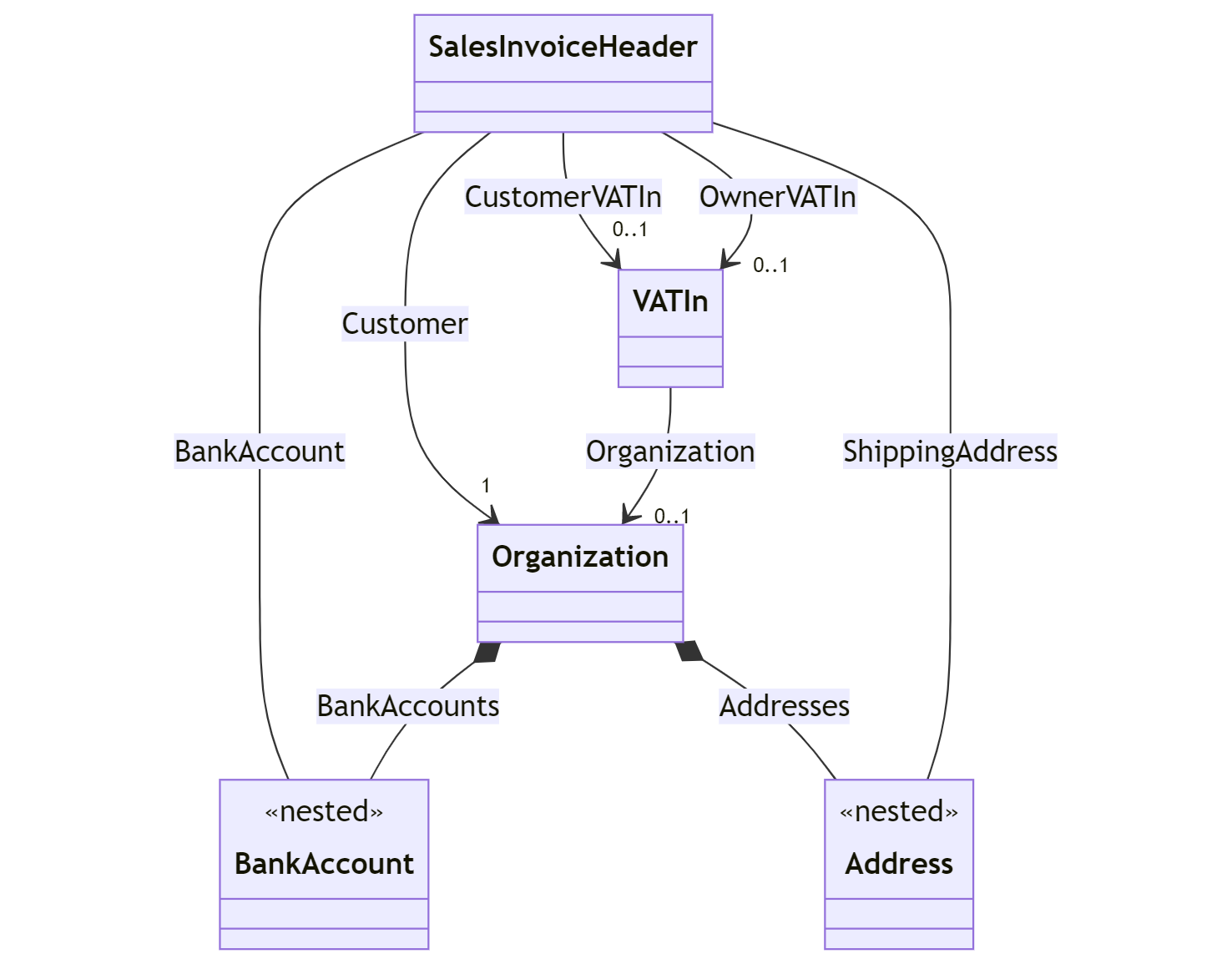

Sales Invoice Header and Organization​

Class diagram

  • description: payment and tax information about the customer
  • typical source: external images/billing-salesinvoiceheader_customer.png

Data models

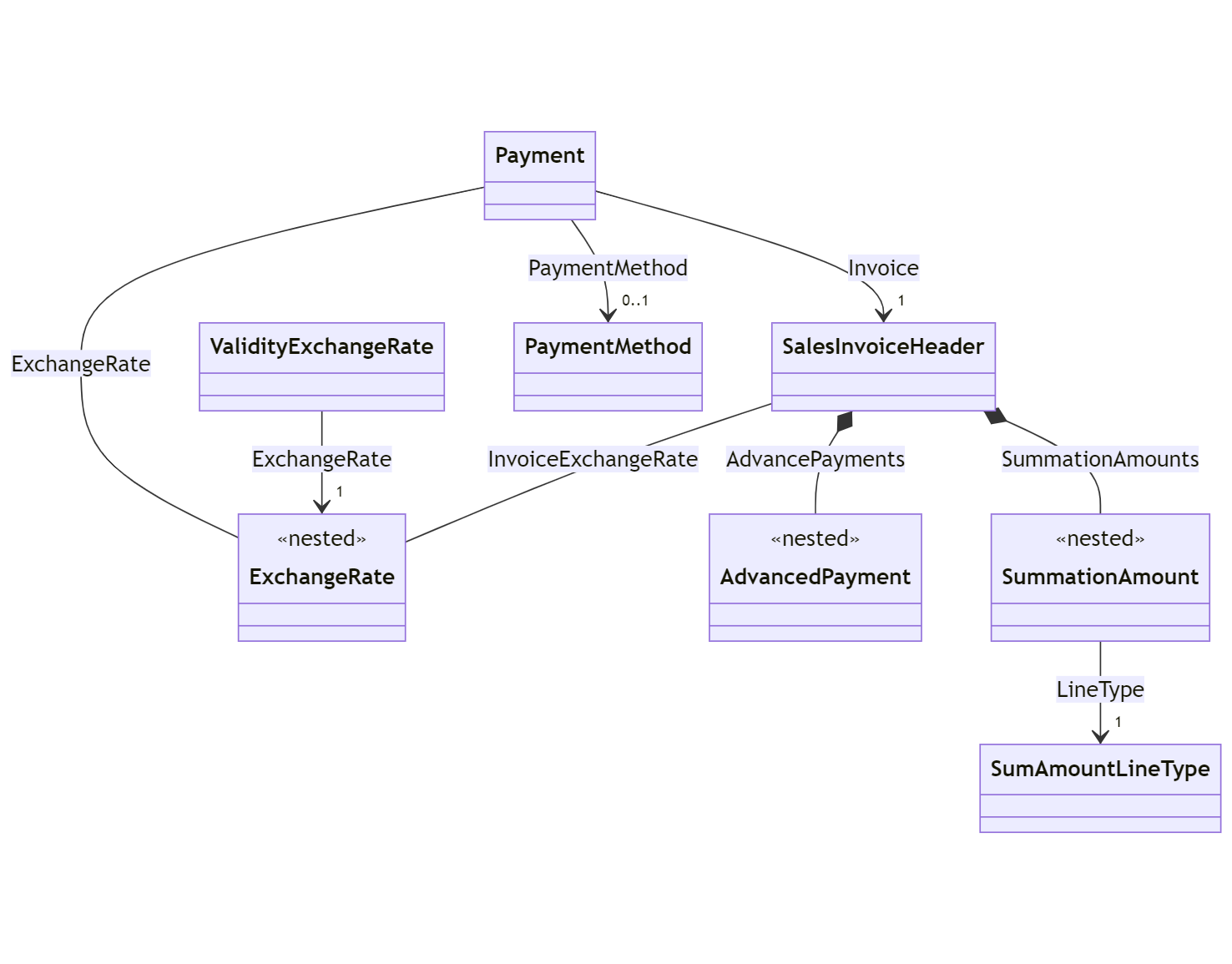

Sales Invoice Header with Summation Amount and Payment​

  • description: recapitulation of document amounts, tax amounts and payments made
  • typical source: external

Class diagram

images/billing-salesinvoiceheader_amounts.png

Data models

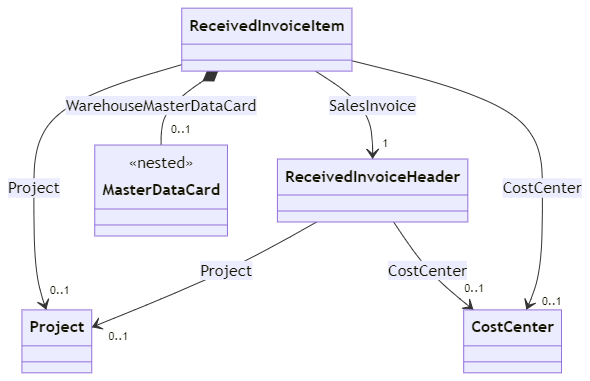

Received Invoice Header and Received Invoice Item​

Class diagram

  • description: dependencies between received invoice header and its items
  • typical source: external images/invoicing_receivedinvoiceitem_receivedinoviceheader.png

Data models

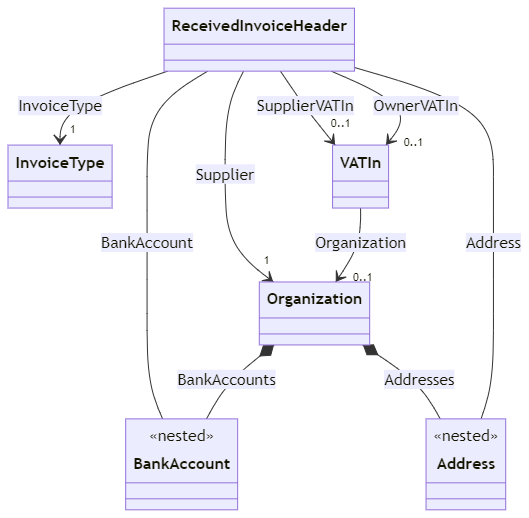

Received Invoice Header and Organization​

Class diagram

  • description: payment and tax information about the supplier
  • typical source: external images/invoicing_receivedinoviceheader_organization.png

Data models

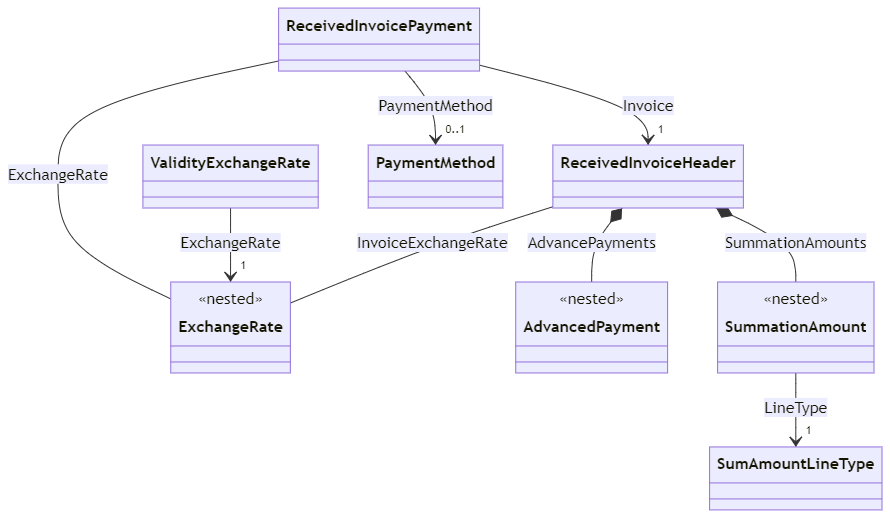

Received Invoice Header with Summation Amount and Payment​

  • description: recapitulation of document amounts, tax amounts and payments made
  • typical source: external

Class diagram

images/invoicing_receivedinoviceheader_receivedinvoicepayment.png

Data models
