Operating log

Overview

Operating log provides proprietary end-to-end logging mechanism and keeps information about data operations which have been applied during processing of data. Logs are grouped by operationId identifier and qualified with operationType enumeration.

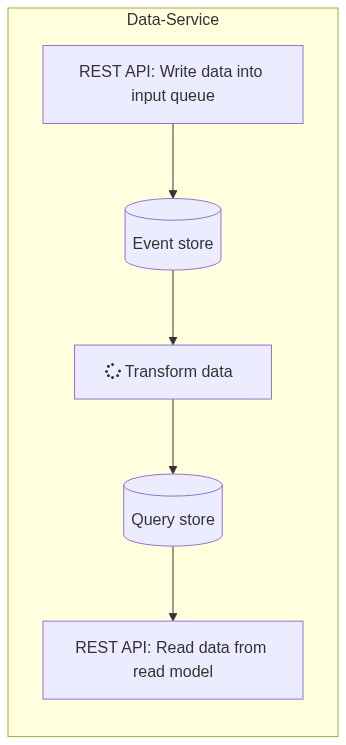

Data flow

A data processing usually starts by enqueing of data, continues with data transformations and ends with published events. Consumers notified by event then appends additional info to log when processing incoming data changes.

Each operation-pipeline can be extended by other cooperating services reusing the same operationId, e.g.:

any Consumer service - can send info about processing of incoming data-changes
any Publisher service - can send info about preparing of outgoing data-changes before their enqueuing to dataservice
Agent/Application - can send an additional status and append to operating log as AgentStatus operation-type
Agent/Application - can send an additional coordination actions to operating log as Coordination operation-type

Terms

OperationType - represents the type of data processing phase:

InputData - phase of sending input data to dataservice and storing into input queue / event store
Transform - phase of processing input data (including data transformation), storing them into query store and sending notifications about processed-data
ConsumeData - phase of querying processed data/data-changes published in query store (including validation and processing of retrieved data by consumer)
AgentStatus - optional information for emergency or periodic agent status
Coordination - optional information about cross-service coordination actions

ActivityType - describes the specific activity within an operation type:

Application|Start, Application|Ack, Application|Begin, Application|End and Application|Finish for milestones and scoped duration pairs (operationType: InputData, ConsumeData), see: publisher logging, consumer logging sections
Validation - validation feedback for retrieved data during querying phase (operationType: ConsumeData)
ProcessingResult - processing result for retrieved data during querying phase (operationType: ConsumeData)
ActionRequest - cross-service action request within the coordination phase (operationType: Coordination)
ActionResponse - cross-service action response within the coordination phase (operationType: Coordination)

OperationScope - is a query filter that groups logs by end-to-end context, scopes make diagnostics easier without assembling complex filters:

PublishData - to see publisher-side steps, use includeSystemLevel flag to see also system-level information
PublishDataWithConsumerFeedback - for full end-to-end visibility from publisher-side including consumer feedback
ConsumerFeedbackOnly - for feedback alone (includes all consumers) from publisher-side
ConsumeData - to see consumer-side steps, use includeSystemLevel flag to see also system-level information
AgentStatus - to filter for agent status logs only
Coordination - to filter for cross-service coordination actions.

Categories - provide finer classification of logged information

System level - the built-in categories help to filter for specific data or mapping issues:

LookupEntityReference - information or issues with entity lookup references
InputDataConversion - information or issues with input-data conversions
InputDataLocalization - information or issues with input-data localization
InputDataProjection - information or issues with input-data projections
MappingTransformation - information or issues with data-mapping transformations

User/Application level - the custom categories can be used to satisfy specific needs of integrated applications.
Use customCategory property to set the category of logged information. Any category set from outside (i.e. by application/agent) is prefixed by Custom prefix as Custom|<category>, e.g. "customCategory": "ABC" category is classified as Custom|ABC category.

Usage

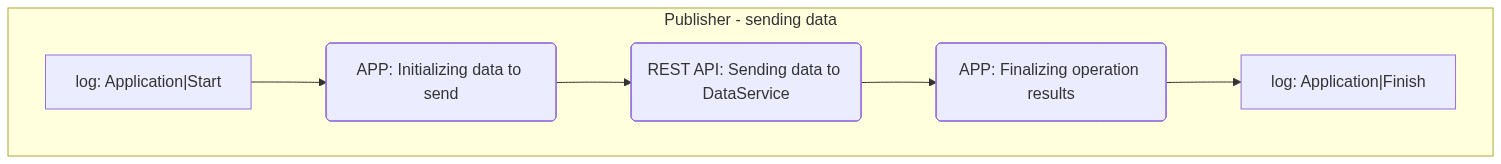

Publisher logging when sending data to platform

Application end-to-end logging encapsulating the whole publishing process when sending data.

operationType: InputData
minimal logging: Application|Start + Application|Finish milestones
typical logging: Application|Start + [Application|Begin + Application|End scope +] Application|Finish milestones

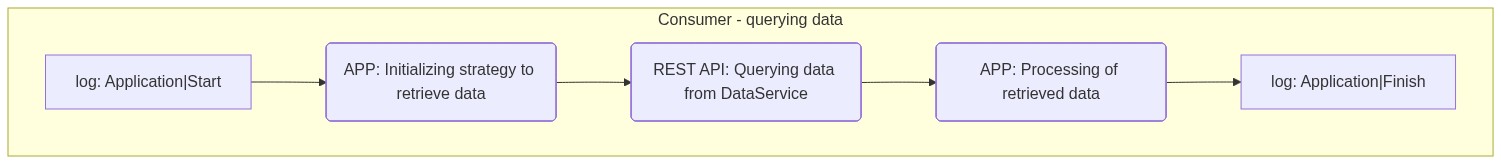

Consumer logging when querying data from platform

Application end-to-end logging encapsulating the whole consuming process when retrieving data.

operationType: ConsumeData
minimal logging: Application|Start + Application|Finish milestones
typical logging: Application|Start + [Application|Begin + Application|End scope +] Application|Finish milestones

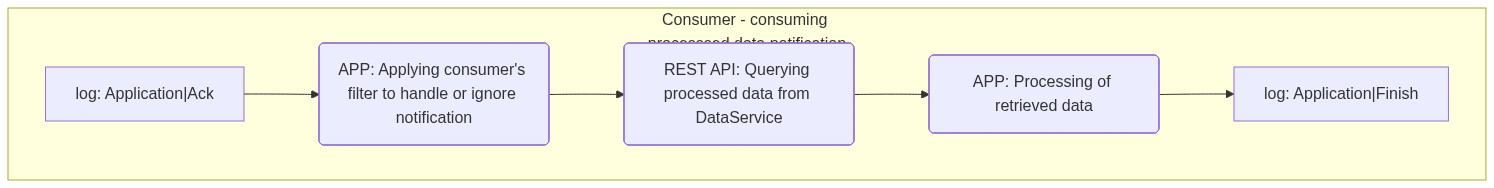

Consumer logging when consuming data via notification

Application end-to-end logging encapsulating the whole consuming process when responding to data notification.

operationType: ConsumeData
minimal logging: Application|Ack + Application|Finish milestones
typical logging: Application|Ack + [Application|Begin + Application|End scope +] Application|Finish milestones

Examples

Example: a consumer service writes result info about processed event when data was processed

{
  "operationId": "<operationId guid obtained from received event>",
  "operationType": "ConsumeData",
  "activityType": "Application|Finish",
  "scopeId": null,
  "severity": "Info",
  "systemLevel": false,
  "customCategory": null,
  "message": "Explain to user what happened, if event was consumed or not.",
  "details": [
    "Optionally you can write more details here."
  ],
  "customFields": [
    { "key": "MyKey", "value": "MyValue" }
  ],
  "source": "MyService",
  "sourceId": "<datasourceId guid of owned data-agent>",
  "publisherSourceId": "<datasourceId guid of publisher data-agent>"
}

GET examples (OperationScope variants)

Filter the collection by operation scope. Each scope targets a different part of the end-to-end pipeline, so you can answer specific questions (publisher vs. consumer vs. status vs. coordination) without over-filtering by OperationType or ActivityType.

/api/v1/OperatingLogs - get filtered, paged operating log items

Query parameters

Name	Type	Required	Default	Description
operationId	string (uuid)	No	—	The operation identifier.
includeSystemLevel	boolean	No	false	Include system-level items in addition to application-level items.
severityLevel	string (enum: StatusSeverity)	No	—	Minimal severity to return (e.g. `Info`, `Warning`, `Error`).
agentCode	string	No	—	Data-agent code of the log-item owner.
agentId	string (uuid)	No	—	Data-agent identifier of the log-item owner.
sourceId	string (uuid)	No	—	Data-source identifier of the log-item owner.
operationScope	string (enum: OperationScope)	No	—	Operation scope filter (e.g. `PublishData`, `PublishDataWithConsumerFeedback`, `ConsumerFeedbackOnly`, `ConsumeData`).
createdFrom	string (date-time)	No	—	CreatedOn >= this UTC datetime.
createdTo	string (date-time)	No	—	CreatedOn <= this UTC datetime.
offset	integer (int32)	No	0	Paging offset.
limit	integer (int32)	No	100	Paging limit.

OperationScope variants:

PublishData - Use when you want to see only the publisher side of the operation, i.e. upload, enqueue, transform, and publishing from the publisher’s perspective. This is most suitable for troubleshooting on the source side and validating the publishing process without consumer feedback.

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?operationScope=PublishData&sourceId=<publisherSourceId>&offset=0&limit=50" ^
  -H "Authorization: Bearer <access_token>"

PublishDataWithConsumerFeedback - Use when you need the full picture of the integration operation, i.e. both the publisher process and consumer feedback. This is the ideal option for end-to-end tracing of a single operation filtered by operationId.

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?operationScope=PublishDataWithConsumerFeedback&operationId=<operationId>&includeSystemLevel=true" ^
  -H "Authorization: Bearer <access_token>"

ConsumerFeedbackOnly - Use when you are interested only in consumer feedback (e.g. validation or processing on the consumer side) without publisher-side logs. Very useful for analyzing issues like “data arrived but was not accepted”.

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?operationScope=ConsumerFeedbackOnly&operationId=<operationId>&severityLevel=Warning" ^
  -H "Authorization: Bearer <access_token>"

ConsumeData - Use when you want to see only the consumer side of the process. Typically filtered by the consumer’s sourceId and a required time window. Helps track data processing on the receiving side.

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?operationScope=ConsumeData&sourceId=<consumerSourceId>&createdFrom=2026-01-01T00:00:00Z" ^
  -H "Authorization: Bearer <access_token>"

AgentStatus - (legacy) Can be used when dealing with agent state (e.g. the agent cannot fulfill a request, is paused, etc.). Typically filtered by agentId or agentCode.

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?operationScope=AgentStatus&agentId=<agentId>" ^
  -H "Authorization: Bearer <access_token>"

Coordination - (experimental) Can be used for coordination operations (i.e. action requests/responses). Suitable for tracking coordination handshakes between services and observing the flow and chaining of individual requests.

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?operationScope=Coordination&operationId=<operationId>" ^
  -H "Authorization: Bearer <access_token>"

POST examples (Validation, ProcessingResult)

/api/v1/OperatingLogs

Request body properties:

operationId - the unique identifier for the operation (usually obtained from notification message)
operationType - the type of operation (ConsumeData)
activityType - the type of activity representing a performance milestone (Validation, ProcessingResult)
severity - the severity of status information (Info, Warning, Error)
source - the human readable identifier of integration agent creating this log item
sourceId - the unique identifier for the data-source of integration agent reporting validation or processing result
publisherSourceId - the data-source identifier of integration agent representing publisher (usually obtained from notification message)

Url example:

POST https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs

Validation activity (consumer feedback) - validation result of retrieved data during querying phase (severity: warning or error). This information can be used by consumer services to provide feedback to users about the processing of received data, e.g. to explain why specific records were rejected before processing.

{
  "operationId": "<operationId guid from event>",
  "operationType": "ConsumeData",
  "activityType": "Validation",
  "severity": "Warning",
  "message": "Record 456 rejected: field 'Email' is invalid.",
  "source": "MyConsumer",
  "sourceId": "<consumerSourceId guid>",
  "publisherSourceId": "<publisherSourceId guid>"
}

Successful ProcessingResult activity - the processing result for retrieved data during querying phase (severity: info or warning). This information can be used by consumer services to provide feedback to users about the processing of received data, e.g. to confirm that specific records were successfully processed.

{
  "operationId": "<operationId guid>",
  "operationType": "Transform",
  "activityType": "ProcessingResult",
  "severity": "Info",
  "message": "Processing completed successfully.",
  "source": "MyService",
  "sourceId": "<datasourceId guid>"
}

Failed ProcessingResult activity - the processing result for retrieved data during querying phase (severity: error). This information can be used by consumer services to provide feedback to users about the processing of received data, e.g. to explain why specific records were not processed.

{
  "operationId": "<operationId guid>",
  "operationType": "Transform",
  "activityType": "ProcessingResult",
  "severity": "Error",
  "message": "Processing failed.",
  "details": [
    "Primary key missing in record 123.",
    "Import aborted."
  ],
  "source": "MyService",
  "sourceId": "<datasourceId guid>"
}

Performance statistics & visualization

Platform provides performance-oriented logging to track and measure data flow between Publishers, the Platform, and Consumers. There are two use-cases supported:

investigation of specific virtual operation defined by OperationId and helps to identify bottlenecks and delays
aggregated statistics values (mean, median, min, max, ...) for period of time From, To

The visualization of data flow by generated Mermaid-based Gantt chart diagram.

Publisher logging

To track publisher behavior in OperationType.InputData phase:

Activity	Required `ActivityType`	Milestone	Description
APP: Start of publishing data process	`Application	Start` (const: OperationActivityType.ApplicationStart)	✔
APP: Begin of publishing data step	`Application	Begin` (const: OperationActivityType.ApplicationBegin)
APP: End of publishing data step	`Application	End` (const: OperationActivityType.ApplicationEnd)
APP: Finish of publishing data process	`Application	Finish` (const: OperationActivityType.ApplicationFinish)	✔

Note: Each pair (begin/end) must use the same ScopeId to enable duration tracking. Application can provide multiple pairs (begin/end) with different ScopeIds for more complex scenarios.

Consumer logging

To track consumer processing in OperationType.ConsumeData phase:

Activity	Required `ActivityType`	Milestone	Description
APP: Start of consuming data process	`Application	Start` (const: OperationActivityType.ApplicationStart)	✔
APP: Acknowledge of consuming data notification	`Application	Ack` (const: OperationActivityType.ApplicationAck)	✔
APP: Begin of consuming data processing	`Application	Begin` (const: OperationActivityType.ApplicationBegin)
APP: End of consuming data processing	`Application	End` (const: OperationActivityType.ApplicationEnd)
APP: Finish of consuming data process	`Application	Finish` (const: OperationActivityType.ApplicationFinish)	✔

Note: Each pair (begin/end) must use the same ScopeId to enable duration tracking. Application can provide multiple pairs (begin/end) with different ScopeIds for more complex scenarios.

Logging requirements

To include a component (Publisher or Consumer) in performance statistics, it must log specific activity types and provide paired start/end logs with consistent ScopeId or specific milestone.

⛔ Warning when not used

If the application does not follow the above rules, the system cannot calculate performance statistics nor visualize its execution in the diagram. Thus it would not be able to specify the time spent in a specific component (i.e. publisher or consumer), leading to a loss of valuable insights into the data flow performance.

Time Pairing (Scope ID)

Every scoped operation must have:

a BeginTime log (e.g., Application|Begin)
a EndTime log (e.g., Application|End)
and both logs must share the same ScopeId

Multiple such pairs can exist per consumer or publisher, and they will be aggregated.

Note: The milestone operation isn't paired and represents a moment when milestone occcured.

Examples

How to write the start, ack or finish application milestone into operating log in consuming phase - Click to expand

/api/v1/OperatingLogs

Request body properties:

operationId - the unique identifier for the operation
operationType - the type of operation (InputData, ConsumeData)
activityType - the type of activity representing a performance milestone (Application|Start, Application|Ack, Application|Finish)
severity - the severity of status information (Info, Warning, Error)
source - the human readable identifier of integration agent creating this log item
sourceId - the unique identifier for the data-source of integration agent

Note: operationId guid has been obtained (e.g. from received notification) or created as a new guid

Url example:

https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs

Sample request body:

{
  "operationId": "<operationId guid>",
  "operationType": "ConsumeData",
  "activityType": "Application|Start",
  "severity": "Info",
  "source": "<human readable identifier of data-agent>",
  "sourceId": "<datasourceId guid of data-agent>"
}

Sample response:

{
    "id": "07919f59-1cd3-400d-89bf-a9955891fc26",
    "operationId": "f670127a-ef1b-4926-ab64-387fba251523",
    "operationType": "ConsumeData",
    "activityType": "Application|Start",
    "createdOn": "2026-03-04T15:59:03.64Z",
    "severity": "Info",
    "systemLevel": false,
    "category": "Custom",
    "source": "ASOLEU-DataIntegrationExample2-AP-",
    "agentId": "65d9f221-01ce-433f-bc63-e81a4201516a",
    "sourceId": "65d9f221-01ce-433f-bc63-e81a4201516a"
}

How to write the begin/end of the application scoped operation into operating log in consuming phase - Click to expand

/api/v1/OperatingLogs

Request body properties:

operationId - the unique identifier for the operation
operationType - the type of operation (InputData, ConsumeData)
activityType - the type of activity representing a performance scope (Application|Begin, Application|End)
scopeId - the unique identifier representing the scope of begin-end pair, useful when you need to distinguish multiple activities in the same operation
severity - the severity of status information (Info, Warning, Error)
source - the human readable identifier of integration agent creating this log item
sourceId - the unique identifier for the data-source of integration agent

Note: operationId guid has been obtained (e.g. from received notification) or created as a new guid Note: the begin-end pair encapsulates the duration of specific activity (e.g. complex processing of consumed data)

Url examples:

https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs

Sample request body:

{
  "operationId": "<operationId guid>",
  "operationType": "ConsumeData",
  "activityType": "Application|Begin",
  "scopeId": "<unique identifier representing scope>",
  "severity": "Info",
  "source": "<human readable identifier of data-agent>",
  "sourceId": "<datasourceId guid of data-agent>",
  "scopeId": "<scopeId uuid>"
}

Sample response:

{
    "id": "07919f59-1cd3-400d-89bf-a9955891fc28",
    "operationId": "f670127a-ef1b-4926-ab64-387fba251523",
    "operationType": "ConsumeData",
    "activityType": "Application|Begin",
    "createdOn": "2026-03-04T15:59:03.64Z",
    "severity": "Info",
    "systemLevel": false,
    "category": "Custom",
    "source": "ASOLEU-DataIntegrationExample2-AP-",
    "agentId": "65d9f221-01ce-433f-bc63-e81a4201516a",
    "sourceId": "65d9f221-01ce-433f-bc63-e81a4201516a",
    "scopeId": "EKqjYYBKTEeuGcBM5Miazw"
}

Endpoints

Endpoint Summary

Method	Path	Short description
	/api/v1/OperatingLogs	Get filtered, paged operating log items
	/api/v1/OperatingLogs	Create a new operating log item

GET /api/v1/OperatingLogs

Summary: Get a filtered collection of operating log items. Description: Returns a paged list of operating logs that match the provided filters. Auth: Bearer token Roles/Scopes: —

Request

Query parameters

Name	Type	Required	Default	Description
operationId	string (uuid)	No	—	The operation identifier.
includeSystemLevel	boolean	No	false	Include system-level items in addition to application-level items.
severityLevel	string (enum: StatusSeverity)	No	—	Minimal severity to return (e.g. `Info`, `Warning`, `Error`).
agentCode	string	No	—	Data-agent code of the log-item owner.
agentId	string (uuid)	No	—	Data-agent identifier of the log-item owner.
sourceId	string (uuid)	No	—	Data-source identifier of the log-item owner.
operationScope	string (enum: OperationScope)	No	—	Operation scope filter (e.g. `PublishData`, `PublishDataWithConsumerFeedback`, `ConsumerFeedbackOnly`, `ConsumeData`).
createdFrom	string (date-time)	No	—	CreatedOn >= this UTC datetime.
createdTo	string (date-time)	No	—	CreatedOn <= this UTC datetime.
offset	integer (int32)	No	0	Paging offset.
limit	integer (int32)	No	100	Paging limit.

Headers

Name	Required	Example	Description
Authorization	Yes	Bearer <access_token>	OAuth2 bearer token.

Body

Content-Type: —
Schema: —

Response

Response statuses
- 200 OK: { totalCount, items[] }
- 400 Bad Request: invalid filter (e.g. malformed GUID)
Example response (json)

{
  "totalCount": 1,
  "items": [
    {
      "id": "11111111-1111-1111-1111-111111111111",
      "operationId": "00000000-0000-0000-0000-000000000000",
      "operationType": "ConsumeData",
      "activityType": "Application|Finish",
      "createdOn": "2026-01-06T10:11:12Z",
      "severity": "Warning",
      "systemLevel": false,
      "category": "MyCategory",
      "message": "Explain to user what happened.",
      "details": ["Optional technical details."],
      "customFields": [{ "key": "MyKey", "value": "MyValue" }],
      "source": "MyService",
      "agentId": "22222222-2222-2222-2222-222222222222",
      "sourceId": "33333333-3333-3333-3333-333333333333",
      "publisherSourceId": "44444444-4444-4444-4444-444444444444",
      "utcTimestamp": "2026-01-06T10:10:00Z",
      "scopeId": "EKqjYYBKTEeuGcBM5Miazw"
    }
  ]
}

Examples

curl

curl -X GET "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?OperationId=<guid>&IncludeSystemLevel=true&SeverityLevel=Warning&Offset=0&Limit=50" ^
  -H "Authorization: Bearer <access_token>"

powershell

$headers = @{ Authorization = "Bearer <access_token>" }
$url = "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs?OperationId=<guid>&IncludeSystemLevel=false&SeverityLevel=Warning&Offset=0&Limit=50"
Invoke-RestMethod -Method Get -Uri $url -Headers $headers

POST /api/v1/OperatingLogs

Summary: Create a new operating log item.
Description: Creates a new operating log entry.
Auth: Bearer token

Request

Headers

Name	Required	Example	Description
Authorization	Yes	Bearer <access_token>	OAuth2 bearer token.
Content-Type	Yes	application/json	Request body media type.

Body

Content-Type: application/json
Schema: OperatingLogModelCreate

Request body parameters

Property	Type	Description
`operationId`	`uuid`	The operation identifier (optional).
`operationType`	`string` (enum: OperationType)	The operation type of item (e.g. `InputData`, `Transform`, `ConsumeData`).
`activityType`	`string`	The activity type of item (optional, e.g. `Validation`, `ProcessingResult`, `Application
`severity`	`string` (enum: StatusSeverity)	The item severity (e.g. `Info`, `Warning`, `Error`).
`systemLevel`	`bool`	The flag to distinguish system-level (`true`) ando user-level (`false`) of item. Default: `false`.
`customCategory`	`string`	The identifier of the `Custom-<customId>` subcategory (optional).
`message`	`string`	The log message.
`details`	`array`	The technical details (optional).
`customFields`	`array`	The custom fields (optional).
`source`	`string`	The human-readable identifier of the log-item owner (optional).
`agentId`	`uuid`	Data-agent identifier of the log-item owner (optional).
`sourceId`	`uuid`	Data-source identifier of the log-item owner (optional).
`publisherSourceId`	`uuid`	Data-source identifier of the publisher (optional). Used in `operationType` `ConsumeData` context
`utcTimestamp`	`date-time`	The datetime timestamp of item occurence (optional).
`scopeId`	`string`	The begin-end scope identifier (optional).

Response

Response statuses
- 201 Created: uuid The identifier of created item.
Example response (json)

{
  "operationId": "11111111-1111-1111-1111-111111111111",
  "operationType": "Transform",
  "activityType": "ProcessingResult",
  "severity": "Info",
  "systemLevel": false,
  "message": "Processing completed successfully.",
  "source": "MyService",
  "sourceId": "22222222-2222-2222-2222-222222222222"
}

Examples

curl

curl -X POST "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs" ^
  -H "Authorization: Bearer <access_token>" ^
  -H "Content-Type: application/json" ^
  -d "{\"operationId\":\"<uuid>\",\"operationType\":\"ConsumeData\",\"activityType\":\"Application|Finish\",\"severity\":\"Info\",\"systemLevel\":false,\"message\":\"Explain to user what happened.\"}"

powershell

$headers = @{
  Authorization = "Bearer <access_token>"
  "Content-Type" = "application/json"
}

$body = @{
  operationId   = "<uuid>"
  operationType = "ConsumeData"
  activityType  = "Application|Finish"
  severity      = "Info"
  systemLevel   = $false
  message       = "Explain to user what happened."
} | ConvertTo-Json -Depth 10

Invoke-RestMethod -Method Post `
  -Uri "https://demo.avaplace.com/api/asol/ds/api/v1/OperatingLogs" `
  -Headers $headers `
  -Body $body

Overview​

Data flow​

Terms​

Usage​

Publisher logging when sending data to platform​

Consumer logging when querying data from platform​

Consumer logging when consuming data via notification​

Examples​

GET examples (OperationScope variants)​

POST examples (Validation, ProcessingResult)​

Performance statistics & visualization​

Publisher logging​

Consumer logging​

Logging requirements​

⛔ Warning when not used​

Time Pairing (Scope ID)​

Examples​

Endpoints​

Endpoint Summary​

GET /api/v1/OperatingLogs​

Request​

Response​

Examples​

POST /api/v1/OperatingLogs​

Request​

Response​

Examples​

Overview

Data flow

Terms

Usage

Publisher logging when sending data to platform

Consumer logging when querying data from platform

Consumer logging when consuming data via notification

Examples

GET examples (OperationScope variants)

POST examples (Validation, ProcessingResult)

Performance statistics & visualization

Publisher logging

Consumer logging

Logging requirements

⛔ Warning when not used

Time Pairing (Scope ID)

Examples

Endpoints

Endpoint Summary

GET /api/v1/OperatingLogs

Request

Response

Examples

POST /api/v1/OperatingLogs

Request

Response

Examples
