Connector registration

Connector registration for multi-tenant cloud services​

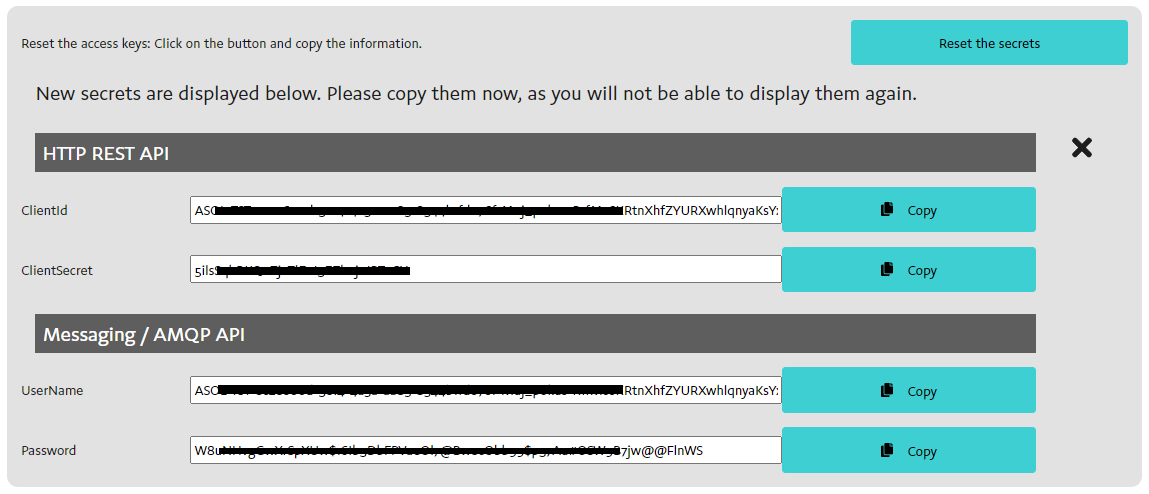

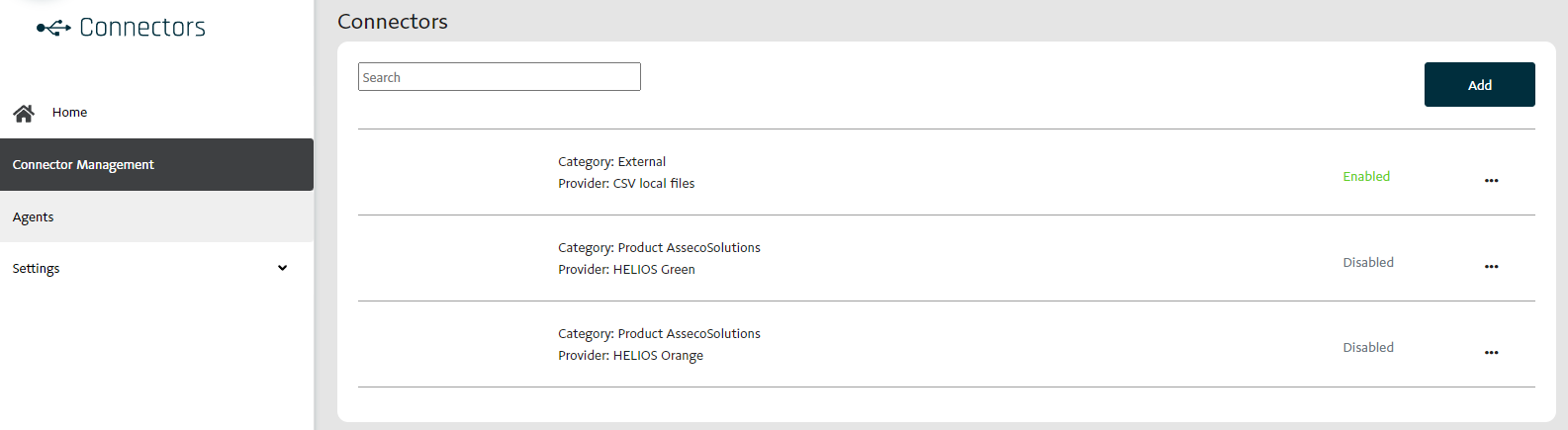

Use DevOps application for connector management (e.g. client credentials).

  1. Use Product App or DevOps App to register your application

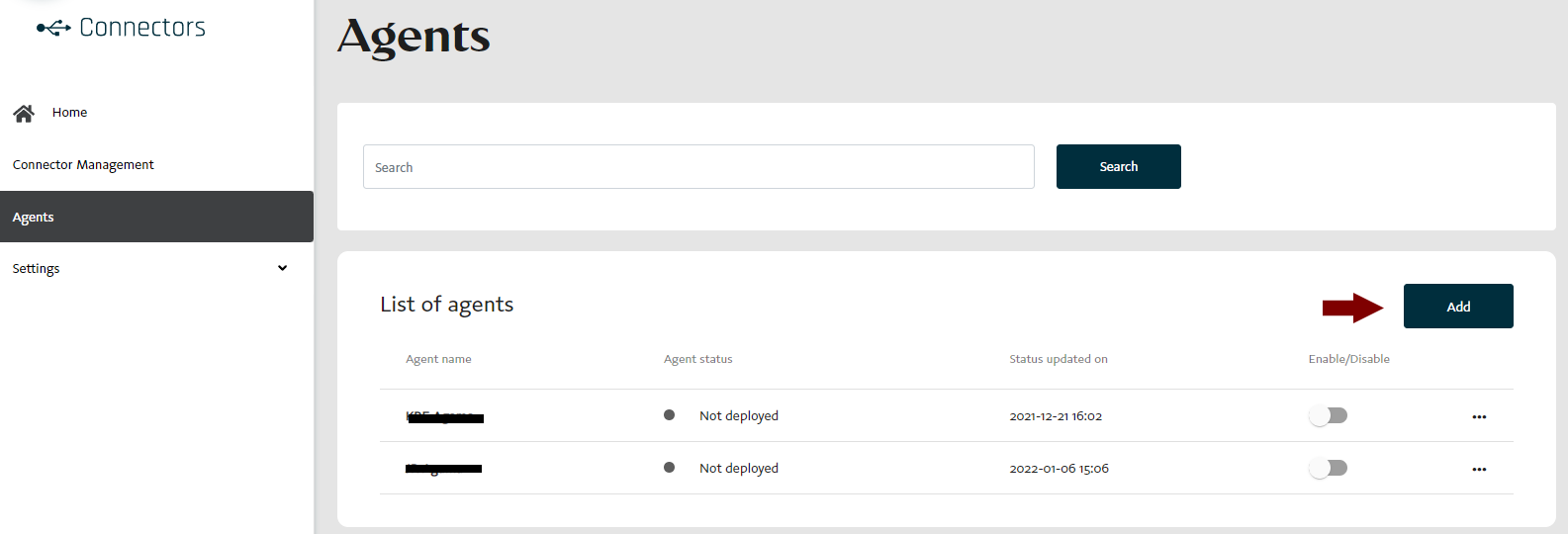

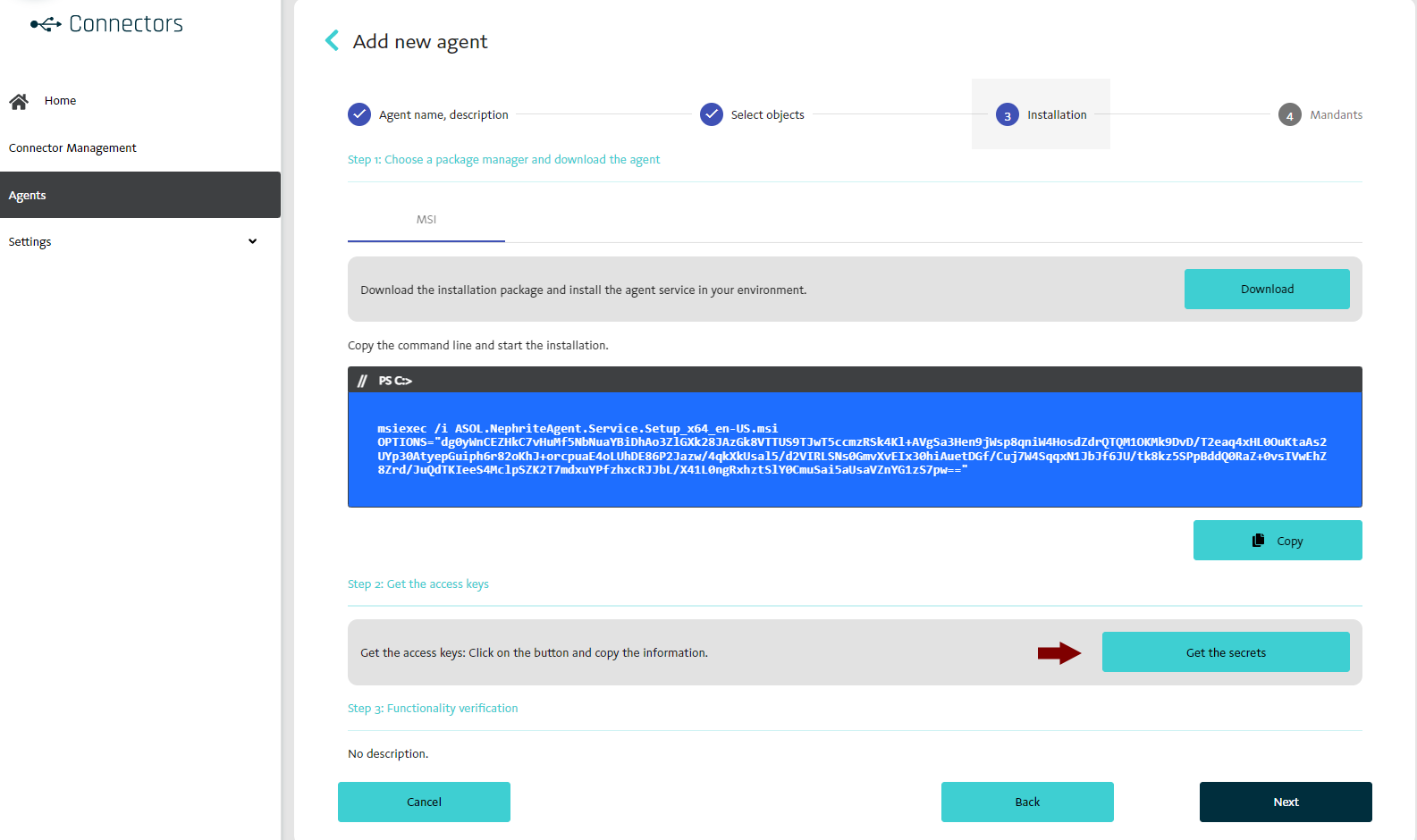

  2. Use Application agent catalogue in Integration section to get clientId and reset secrets
  3. Use REST API for registration and configuration of data-agent, see below

Register integration-agent using REST API​

The registration process of data-agent/data-source for multi-tenant cloud services using DataService backend service. The data-agent and data-source must be registered once for each tenant.

Important: Use GUID generator to generate unique identifier of your data-agent and data-source. Use the same GUIDs for all tenants.

Note: don't forget to enable data-agent and data-source to turn on data-integration processing.

DataService API base URL: https://{hostname}/api/asol/ds

V2 IntegrationAgents API endpoints for data integration - Preferred​

Important: The identification of integration agent is primarily driven by service account. The multi-tenant integration agent is registered once and the registration is shared per all tenants. The sourceId parameter is used to specify data-source identifier for compatibility reasons when necessary. The clientId parameter is used by support user(s) to specify service account explicitly for diagnostic purposes only.

Note: These V2 API endpoints (except Settings) can be used by both: the multi-tenant and single-tenant integration agents.

Settings endpoints​

The Settings endpoints can be used by multi-tenant integration agent(s) only.

  1. Try get definition of the multi-tenant integration-agent
    GET /api/v2/IntegrationAgents/Settings
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • server response:
    • 200 - means that integration-agent is already registered
    • 404 - means that integration-agent isn't registered yet
  • sample response body:
{
  "agent": {
    "agentId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
    "agentCode": "ASOLEU-DataIntegrationExample-AP-",
    "enabled": true
  },
  "source": {
    "sourceId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
    "sourceCode": "ASOLEU-DataIntegrationExample-AP-",
    "applicationCode": "ASOLEU-DataIntegrationExample-AP-",
    "enabled": true,
    "consumerCode": "ASOLEU-DataIntegrationExample-AP-",
    "consumerType": "Grpc"
  },
  "consumer": {
    "consumerCode": "ASOLEU-DataIntegrationExample-AP-",
    "consumerChannel": "gRPC",
    "consumerIsConnected": false,
    "consumerStatus": "Healthy"
  }
}
  1. Register the multi-tenant integration-agent or update registration of integration-agent if not registered
    POST /api/v2/IntegrationAgents/Settings
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • request body properties:
    • agentDefinition
      • description - (optional) the description of data-agent
      • customProperties - (optional) the custom properties to customize data-agent behavior
        • Important: set AutoRefreshStatusInterval when the refreshSourceStatus notification is turned on by message consumer
    • sourceDefinition
      • description - (optional) the description of data-source
      • customProperties - (optional) the custom properties to customize data-source behavior
      • consumerType - the type of used message consumer (values: Grpc, Webhook or None)
        • Important: mandatory to specify the Grpc or Webhook type for message consumer of external application
      • consumerWebhookUrl - (optional) the webhook URL of external application (mandatory for Webhook consumer)
  • sample request body:
{
  "agentDefinition": {
    "description": "Example of multi-tenant integration agent",
    "customProperties": [
      {
        "key": "AutoRefreshStatusInterval",
        "value": "0.01:00:00"
      }
    ]
  },
  "sourceDefinition": {
    "description": "Example of multi-tenant integration agent",
    "consumerType": "Grpc",
    "consumerWebhookUrl": null
  }
}
  1. Ensure that registration of integration-agent is ok (note: you should call this endpoint when integration-agent was started)
    POST /api/v2/IntegrationAgents/Settings
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • request body:
{
}
  • sample response body:
{
  "agent": {
    "agentId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
    "agentCode": "ASOLEU-DataIntegrationExample-AP-",
    "enabled": true,
    "customProperties": [
      {
        "key": "AutoRefreshStatusInterval",
        "value": "0.01:00:00"
      }
    ]
  },
  "source": {
    "sourceId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
    "sourceCode": "ASOLEU-DataIntegrationExample-AP-",
    "applicationCode": "ASOLEU-DataIntegrationExample-AP-",
    "enabled": true,
    "consumerCode": "ASOLEU-DataIntegrationExample-AP-",
    "consumerType": "Grpc"
  },
  "consumer": {
    "consumerCode": "ASOLEU-DataIntegrationExample-AP-",
    "consumerChannel": "gRPC",
    "consumerIsConnected": false,
    "consumerStatus": "Healthy"
  }
}

Transformations endpoints​

  1. Get input transformations the integration-agent
    GET /api/v2/IntegrationAgents/Transformations
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • server response:
    • 200 - means that integration-agent is already registered
    • 404 - means that integration-agent isn't registered yet
  • sample response body:
{
  "sourceId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
  "transformations": {
    "totalCount": 1,
    "items": [
      {
        "customCode": "Example-Entities",
        "mappings": [
          {
            "entityId": "ExampleAuthor",
            "priority": 0,
            "modelId": "6ec3c414-02e5-48a8-81e0-0e120bb9909b",
            "transformationType": "Default",
            "autoMapFields": false,
            "mappings": [
              {
                "sourceFieldName": "NAME",
                "targetFieldName": "Name",
                "transformationType": "Default",
                "aggregateFunction": "None"
              },
              {
                "sourceFieldName": "DESCR",
                "targetFieldName": "Biography",
                "transformationType": "Default",
                "aggregateFunction": "None"
              }
            ],
            "isSupplementary": false
          }
        ]
      }
    ]
  }
}
  1. Register input transformations of the integration-agent
    PATCH /api/v2/IntegrationAgents/Transformations
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • request body properties:
    • upsert - the collection of definitions for insert or update
    • remove - the custom codes of definitions to remove (if not preserved by upsert)
    • removeAll - the flag to remove all definitions (except ones preserved by upsert)
  • sample request body:
{
  "upsert": [
    {
      "customCode": "Example-Entities",
      "description": "Transformation for Example entities like (ExampleAuthor, ExampleBook and ExampleGenre)",
      "mappings": [
        {
          {
            "entityId": "ExampleAuthor",
            "modelId": "6ec3c414-02e5-48a8-81e0-0e120bb9909b",
            "mappings": [
              {
                "sourceFieldName": "NAME",
                "targetFieldName": "Name"
              },
              {
                "sourceFieldName": "DESCR",
                "targetFieldName": "Biography"
              }
            ]
          }
        }
      ]
    }
  ],
  "remove": [
    "Example-Entities"
  ],
  "removeAll": false
}

ConfigureConsumer endpoint​

  1. Register and configure message-gateway consumer
    PATCH /api/v2/IntegrationAgents/ConfigureConsumer
  • id - (mandatory) the GUID identifier of data-source
  • request body properties:
    • enqueueDataStatus - (optional) the flag to enable/disable 'ASOL.DataService.EnqueueDataStatusChanged' message type
    • integrationDataChanges - (optional) the flag to enable/disable 'ASOL.DataService.IntegrationDataChanged' message type with multi-tenant filter
    • integrationProfileStatus - (optional) the flag to enable/disable 'ASOL.DataService.IntegrationProfileChangeStarted' and 'ASOL.DataService.IntegrationProfileChangeCompleted' message types
    • dataRecordChanges - (optional) the flag to enable/disable 'ASOL.DataService.RecordCreated', 'ASOL.DataService.RecordUpdated' and 'ASOL.DataService.RecordDeleted' message types with multi-tenant filter
    • refreshSourceConfig - (optional) the flag to enable/disable 'ASOL.DataService.RefreshSourceConfig' message type
    • refreshSourceStatus - (optional) the flag to enable/disable 'ASOL.DataService.RefreshSourceStatus' message type
    • refreshTenants - (optional) the flag to replace(=true) all existing tenant filters or add/remove(=false) current tenant filter for message types with multi-tenant filter (default: false)
  • sample request body:
{
  "enqueueDataStatus": false,
  "integrationDataChanges": true,
  "integrationProfileStatus": true,
  "dataRecordChanges": false,
  "refreshSourceConfig": true,
  "refreshSourceStatus": true
}

Note: you can setup flags together or independently (i.e. PATCH method), null means no change.

Statuses endpoints​

  1. Get status history of the integration-agent
    GET /api/v2/IntegrationAgents/Statuses
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • query parameters for filtering (optional):
    • offset + limit - the client paging parameters (default values: offset = 0 and limit = 100)
    • operationId - the identifier of virtual operation, see Operating log
    • statusItemId - the identifier of specific status record
  • server response:
    • 200 - means that integration-agent is already registered
    • 404 - means that integration-agent isn't registered yet
  • sample response body:
{
  "sourceId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
  "statuses": {
    "totalCount": 1,
    "items": [
      {
        "statusItemId": "ccc93db6-5813-469d-97bc-f89f4b719c6d",
        "operationId": "2055f48c-9470-47e8-b809-c16d37742350",
        "isLive": true,
        "isReady": true,
        "verboseStatus": [
          "TEST"
        ],
        "utcTimestamp": "2025-04-10T07:30:36.365Z",
        "createdOn": "2025-04-10T07:31:39.199Z"
      }
    ]
  }
}
  1. Create new status of the integration-agent
    POST /api/v2/IntegrationAgents/Statuses
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • request body properties:
    • operationId - (optional) the identifier of virtual operation, see Operating log
    • isLive - the flag if the integration-agent is healthy and connected to AVAplace platform
    • isReady - the flag if the integration-agent is healthy and ready to communicate with 3rd-party application
    • verboseStatus - (optional) the verbose status
    • utcTimestamp - the status timestamp in UTC of the integration-agent
  • sample request body:
{
  "operationId": "2055f48c-9470-47e8-b809-c16d37742350",
  "isLive": true,
  "isReady": true,
  "verboseStatus": [
    "TEST"
  ],
  "utcTimestamp": "2025-04-10T07:30:36.365Z"
}

SupportedFeatures endpoints​

  1. Try get supported features of the integration-agent
    GET /api/v2/IntegrationAgents/SupportedFeatures
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • server response:
    • 200 - means that integration-agent is already registered
    • 404 - means that integration-agent isn't registered yet
  • sample response body:
{
  "sourceId": "1a83fde1-8cdb-4481-a503-bf7a22afeafe",
  "application": {
    "id": "3f5e77b1-fb25-4b11-b00d-fc195ca18ca1",
    "code": "ASOLEU-DataIntegrationExample-AP-",
    "name": "DataIntegration Example",
    "isNative": false,
    "isOnPremise": false,
    "released": true,
    "deleted": false
  },
  "supportedFeatures": {
    "totalCount": 1,
    "items": [
      {
        "applicationUsage": "Input",
        "featureUsage": "Input",
        "featureId": "ee9ec8a4-b3ab-4395-8197-4924ca3bb2b4",
        "feature": {
          "id": "ee9ec8a4-b3ab-4395-8197-4924ca3bb2b4",
          "code": "Employments",
          "name": "Employments",
          "released": true,
          "deleted": false
        }
      }
    ]
  }
}
  1. Register supported features of the integration-agent
    PATCH /api/v2/IntegrationAgents/SupportedFeatures
  • sourceId - (optional) the identifier of data-source (e.g. DataSourceId/SourceId of data-integration agent)
  • request body properties:
    • upsert - the collection of definitions for insert or update
    • remove - the feature codes of definitions to remove (if not preserved by upsert)
    • removeAll - the flag to remove all definitions (except ones preserved by upsert)
  • sample request body:
{
  "upsert": [
    {
      "featureCode": "Employments",
      "featureUsage": "Input"
    }
  ],
  "remove": [
    "Employments"
  ],
  "removeAll": false
}

V1 DataAgents and DataSources API endpoints for data integration - Obsolete​

Important: These V1 API endpoints were kept for compatibility reasons only and will be removed in future releases.

  1. Try get the data-agent definition using identifier
    GET /api/v1/DataAgents/{id}
  • id - (mandatory) the data-agent identifier
  • server response:
  • 200 - means that data-agent is already registered
  • 404 - means that data-agent isn't registered yet
  1. Register data-agent or update registration of data-agent if not registered
    POST /api/v1/Process/ImportDataAgent
  • allowUpdate - (optional) flag if update of existing definition is allowed or not
  • request body properties:
    • id - the GUID identifier of data-agent
    • code - (mandatory) the unique code of data-agent "<app-vendor>.<agent-name>", e.g. "ASOL.DataIntegrationExternalAgent"
    • description - the description of data-agent
    • enabled - the flag if data-agent is enabled or disabled
  • sample request body:
{
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa5",
  "code": "ASOL.DataIntegrationExternalAgent",
  "enabled": true
}
  1. Try get the data-source definition using identifier
    GET /api/v1/DataSources/{id}
  • id - (mandatory) the data-source identifier
  • server response:
  • 200 - means that data-source is already registered
  • 404 - means that data-source isn't registered yet
  1. Register data-source or update registration of data-source if not registered
    POST /api/v1/Process/ImportDataSource
  • allowUpdate - (optional) flag if update of existing definition is allowed or not
  • request body properties:
    • id - the GUID identifier of data-source
    • agentId - (mandatory) the GUID identifier of data-agent
    • name - (mandatory) the unique code of data-source, the code of your data-agent can be used here for simplicity
    • description - the description of data-source
    • enabled - the flag if data-source is enabled or disabled
  • sample request body:
{
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa4",
  "agentId": "3fa85f64-5717-4562-b3fc-2c963f66afa5",
  "name": "ASOL.DataIntegrationExternalAgent",
  "enabled": true
}

Register MessageGateway consumer for data-agent using REST API​

The MessageGateway is service encapsulating message broker and AMQP protocol. The MessageGateway supports two types of communication: gRPC and Webhook.

  1. Configure data-source for message-gateway consumer and integration scenarios
    PATCH /api/v1/DataSources/{id}/IntegrationSettings
  • id - (mandatory) the GUID identifier of data-source
  • request body properties:
    • applicationCode - the global application code of application integrated by data-agent/data-source
    • clientId - the clientId of service account used by data-agent/data-source
    • consumerCode - the unique code of MessageGateway consumer used by data-agent/data-source
    • consumerType - the type of consumer ("Grpc", "Webhook")
    • consumerWebhookUrl - the consumer webhook URL used by data-agent/data-source
    • useIntegrationProfile - the flag if integration profile is used or not (false = legacy mode, true = business scenarios)
    • useConsumerSettings - the flag if legacy consumer settings is used when integration profile isn't used
  • sample request body:
{
  "applicationCode": "ASOLEU-TEST-AP-",
  "clientId": "ASOLEU-TEST-AP-",
  "consumerCode": "ASOLEU-TEST-AP-",
  "consumerType": "Grpc",
  "useIntegrationProfile": false,
  "useConsumerSettings": false
}

Note: you can setup properties together or independently (i.e. PATCH method), null means no change, empty string means clear value.

  1. Register and configure message-gateway consumer
    PATCH /api/v1/DataSources/{id}/ConfigureConsumer
  • id - (mandatory) the GUID identifier of data-source
  • request body properties:
    • enqueueDataStatus - (optional) the flag to enable/disable 'ASOL.DataService.EnqueueDataStatusChanged' message type
    • integrationDataChanges - (optional) the flag to enable/disable 'ASOL.DataService.IntegrationDataChanged' message type with multi-tenant filter
    • integrationProfileStatus - (optional) the flag to enable/disable 'ASOL.DataService.IntegrationProfileChangeStarted' and 'ASOL.DataService.IntegrationProfileChangeCompleted' message types
    • dataRecordChanges - (optional) the flag to enable/disable 'ASOL.DataService.RecordCreated', 'ASOL.DataService.RecordUpdated' and 'ASOL.DataService.RecordDeleted' message types with multi-tenant filter
    • refreshSourceConfig - (optional) the flag to enable/disable 'ASOL.DataService.RefreshSourceConfig' message type
    • refreshSourceStatus - (optional) the flag to enable/disable 'ASOL.DataService.RefreshSourceStatus' message type
    • refreshTenants - (optional) the flag to replace(=true) all existing tenant filters or add/remove(=false) current tenant filter for message types with multi-tenant filter (default: false)
  • sample request body:
{
  "enqueueDataStatus": true,
  "integrationDataChanges": true,
  "integrationProfileStatus": true,
  "dataRecordChanges": true,
  "refreshSourceConfig": true,
  "refreshSourceStatus": true
}

Note: you can setup flags together or independently (i.e. PATCH method), null means no change.

Data-agent metadata events​

Messages remotely commanding data-agent/application. The remote commands have a limited durability (= 1 hour expiration).

These events can be consumed via messaging, see The 1st method of communication - Message Publisher / Consumer.

ASOL.DataService.RefreshSourceStatus​

Remote command to refresh/reload configuration of data-source.

Event definitions

  • messageType: ASOL.DataService.RefreshSourceStatus
    • contractType: RefreshStatusEvent
    • exchange: ASOL.DataService.Edge.Contracts.Events:RefreshStatusEvent
    • queueName: DS.Commands
    • queueArguments: { "x-expires": "3600000" }

Event headers

  • X-DataSourceId - the requested data-source identifier
  • X-Tenant-Id - the tenant identifier of customer

Event classes

  • ASOL.DataService.Edge.Contracts.Events.RefreshStatusEvent

Event properties

  • sourceId - the requested data-source identifier

ASOL.DataService.RefreshSourceConfig​

Remote command to provide current health-status of data-source.

Event definitions

  • messageType: ASOL.DataService.RefreshSourceConfig
    • contractType: RefreshConfigEvent
    • exchange: ASOL.DataService.Edge.Contracts.Events:RefreshConfigEvent
    • queueName: DS.Commands
    • queueArguments: { "x-expires": "3600000" }

Event headers

  • X-DataSourceId - the requested data-source identifier
  • X-Tenant-Id - the tenant identifier of customer

Event classes

  • ASOL.DataService.Edge.Contracts.Events.RefreshConfigEvent

Event properties

  • sourceId - the requested data-source identifier

Migration between message broker and message gateway​

See also:

Upgrade from Message Broker to Message Gateway​

  1. Use IntegrationSettings api endpoint to setup ConsumerCode and ConsumerType
  • example of request body for gRPC:
{
  "consumerCode": "ASOLEU-TEST-AP-",
  "consumerType": "Grpc"
}
  • example of request body for Webhook:
{
  "consumerCode": "ASOLEU-TEST-AP-",
  "consumerType": "Webhook",
  "consumerWebhookUrl": "https://yourwebhookapi.com/webhook"
}
  1. Use ConfigureConsumer api endpoint to configure consumer in MessageGateway
  • Important: register only such message-types which are consumed by your data-agent
  • example of request body:
{
  ...
  "integrationDataChanges": true,
  "integrationProfileStatus": true,
  "refreshSourceConfig": true,
  "refreshSourceStatus": true
  ...
}
  1. Inform AVAplace DevOps team to remove your public IP address registered in firewall and let consumer queues on Message Broker to expire

Revert to Message Broker from Message Gateway​

  1. Use ConfigureConsumer api endpoint to reconfigure consumer in MessageGateway and unregister all message-types from consumer queues
  • example of request body:
{
  "enqueueDataStatus": false,
  "integrationDataChanges": false,
  "integrationProfileStatus": false,
  "dataRecordChanges": false,
  "refreshSourceConfig": false,
  "refreshSourceStatus": false
}
  1. Use IntegrationSettings api endpoint to switch ConsumerType
  • example of request body:
{
  "consumerType": "None"
}
  1. Inform AVAplace DevOps team to register your public IP address in firewall
  • Note: AMQP consumer queues on Message Broker are created automatically when your data-integration agent is connected again

Connector registration for single-tenant on-premise systems​

Use Connector Catalogue application for connector management and registration of data-agent. Currently the on-premise connectors and agents for external applications (e.g. ERP IS) are supported.

images/cc-app-tile.png

Prerequisites:

  • valid license for Connector Catalogue application
  • Admin app role ASOLEU-CONCATAPP-AP-.Admin or TenantAdmin platform role

Choose and configure connector​

Connector represents the business level configuration. Each connector can have the single registration per tenant.

  • Register connector for your product (per tenant), if not already done images/cc-connectors.png
  • Note: don't forget to Enable connector to turn on data-integration processing.

Register and configure data-agent​

On-premise agent represents the technical level configuration. Each agent is associated to the specific connector and can have the multiple registrations per tenant. Each instance typically represents the on-premise installation of external application (e.g. ERP IS).

  • Register agent for your agent instance images/cc-agents.png
  • Copy AgentCode, DataSourceId, TenantId and MandantCode settings and paste into appsettings.json
  • => registered agent has dataAgentId and dataSourceId automatically assigned and ready to use
  • Note: don't forget to Enable data-agent to turn on data-integration processing.

Generate secrets for data-agent​

images/cc-agent-secrets.png

  • Copy secrets and paste into appsettings.json / secrets.json images/cc-agent-secrets-detail.png

Register data-agent using REST API​

The registration process of data-agent/data-source for single-tenant on-premise systems using Connector Catalogue backend service.

Prerequisites:

  • Admin app role ASOLEU-CONCATAPP-AP-.Admin or TenantAdmin platform role

ConnectorCatalogue API base URL: https://{hostname}/api/asol/cc

  1. Get available providers in connector catalogue
    GET /api/v1/Providers
  • offset + limit - the client paging parameters (default values: offset = 0 and limit = 100)
  1. Register and release connector in connector catalogue if not yet
    POST /api/v1/Connectors
  • request body properties:
    • providerId - (mandatory) the GUID identifier of provider in connector catalogue
    • enabled - the flag if connector is enabled or disabled
  • sample request body:
{
  "providerId": "5e6203ab-2422-4aba-b65b-d1a33d5aab32",
  "enabled": true
}

Note: Connector must be released and enabled to be ready. Use Release and Enable actions if necessary using application or API.

  1. Register and release agent in connector catalogue
    POST /api/v1/Agents
  • allowUpdate - (optional) flag if update of existing definition is allowed or not
  • request body properties:
    • connectorId - (mandatory) the GUID identifier of connector in connector catalogue
    • integrationTokenClientId - (optional) the clientId of existing integration token, otherwise the clientId is autogenerated
    • name - (mandatory) the human readable name of agent, the unique agentCode is autogenerated
    • enabled - the flag if agent is enabled or disabled
  • sample request body:
{
  "connectorId": "680e7f17-dd36-402e-aa2b-7edf4c6c3c2b",
  "integrationTokenClientId": null,
  "name": "Demo",
  "enabled": true
}

Note: Agent must be released and enabled to be ready. Use Release and Enable actions if necessary using application or API.
