Typical integration scenarios and datamodels in Bank domain.

Domestic payment order header and items​

Class diagram

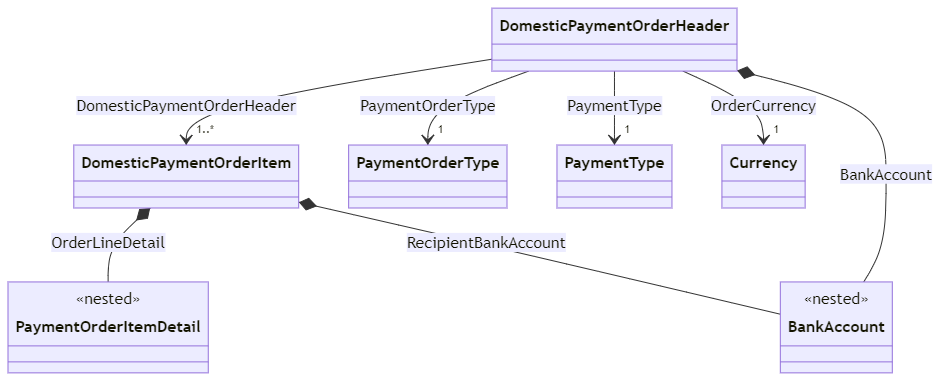

  • description: domestic payment order
  • typical source: external images/bank_domesticpaymentorderheader_domesticpaymentorderitem.png

Data models

Foreign payment order​

Class diagram

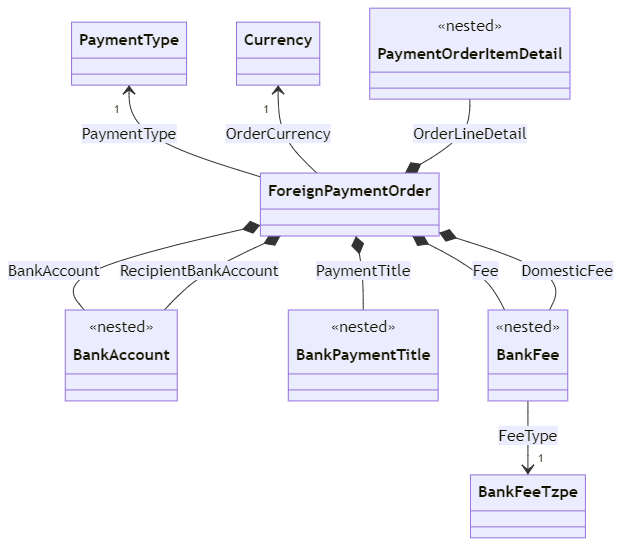

  • description: foreign payment order
  • typical source: external images/bank_foreignpaymentorder.png

Data models

Accounting bank statement header and items​

Class diagram

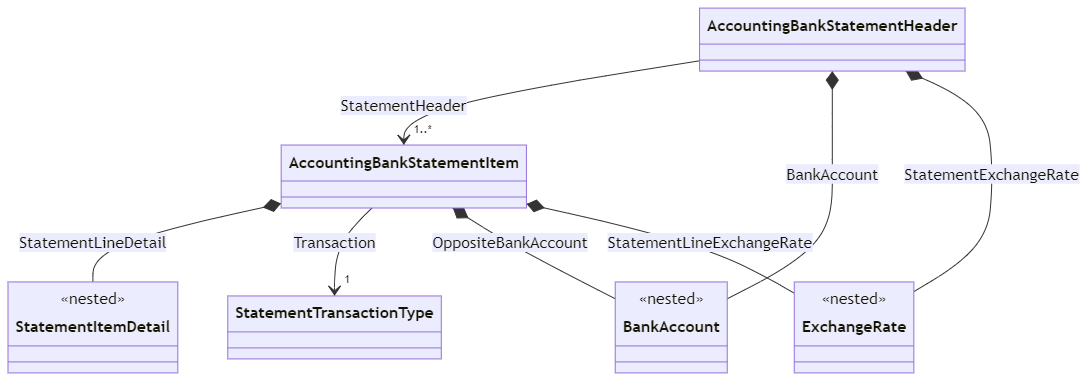

  • description: dependencies between the account header of the bank statement and the items
  • typical source: external images/bank_statementheader_statementitem.png

Data models
