Warehouse domain

Typical integration scenarios and datamodels in Warehouse domain.

Stock master data cards and Measurement units​

Class diagram

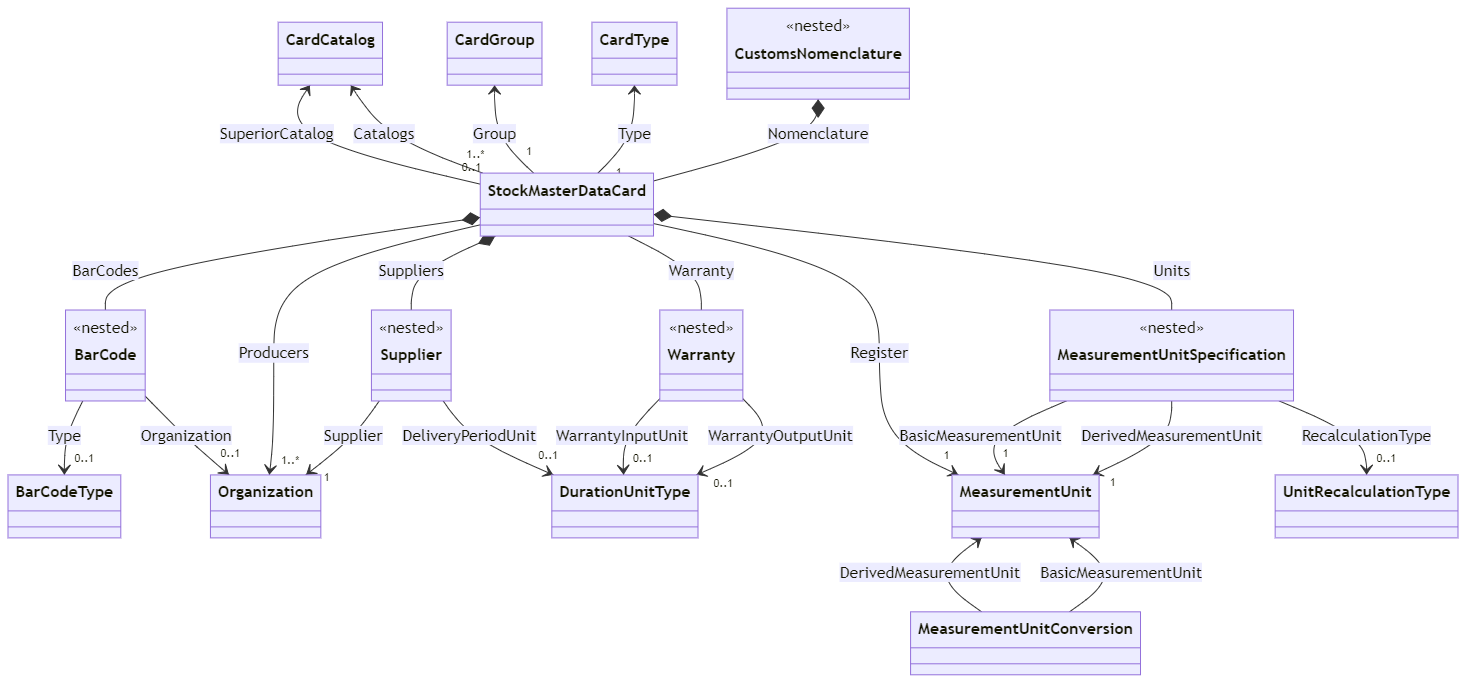

  • description: dependencies between master data card, customs nomenclature, measurement units and card groups
  • typical source: external images/warehouse_masterdatacard_measurementunit.png

Data models

Stock master data cards and VAT​

Class diagram

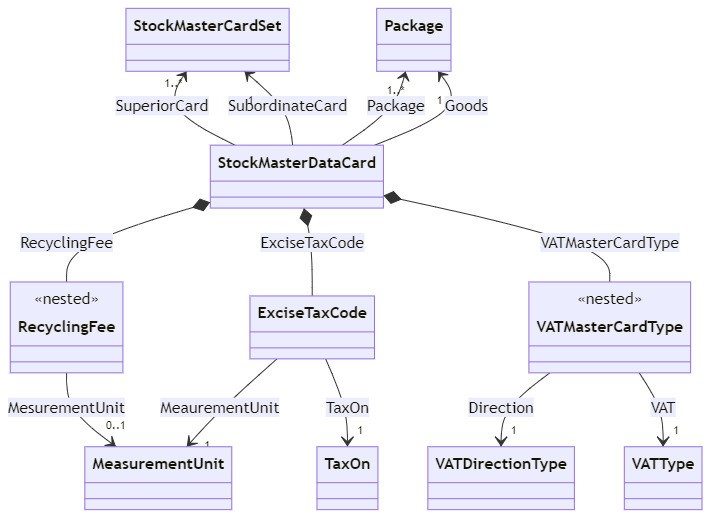

  • description: dependencies between master data card, packaging, card sets, VAT and recycling fee
  • typical source: external images/warehouse_masterdatacard_VAT_Fee.png

Data models

Stock master data cards and Stock level​

Class diagram

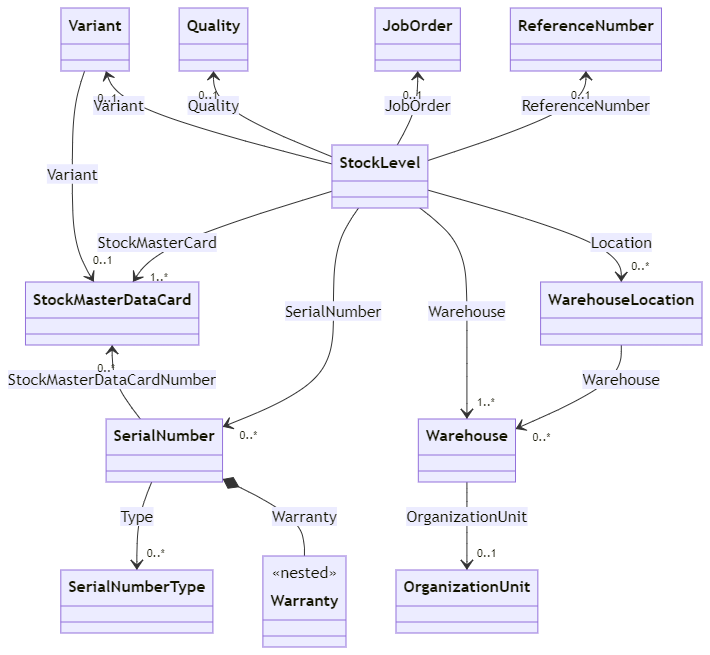

  • description: dependencies between warehouse master data cards, stock level, warehouses, locations, and serial numbers
  • typical source: external images/warehouse_masterdatacard_stock_level.png

Data models

Warehouse issue header​

Class diagram

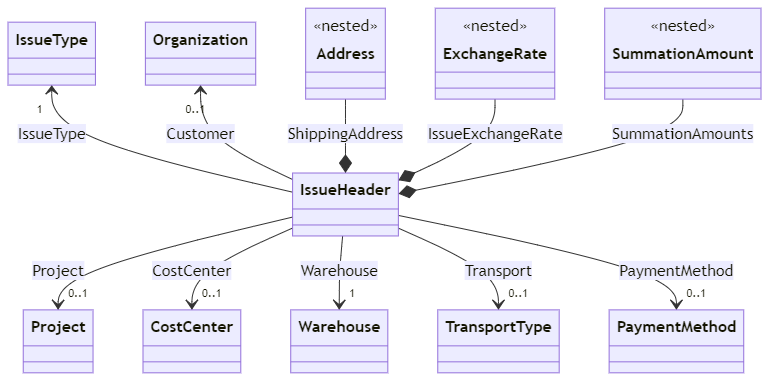

  • description: dependencies related to warehouse issue header
  • typical source: external images/warehouse_issue_header.png

Data models

Warehouse issue item​

Class diagram

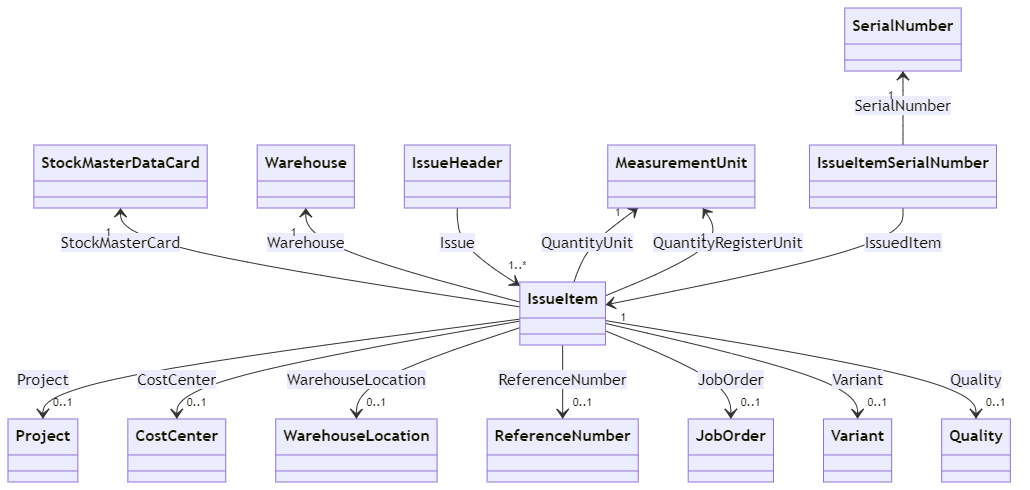

  • description: dependencies related to warehouse issue item
  • typical source: external images/warehouse_issue_item.png

Data models

Price list header and Price list item​

Class diagram

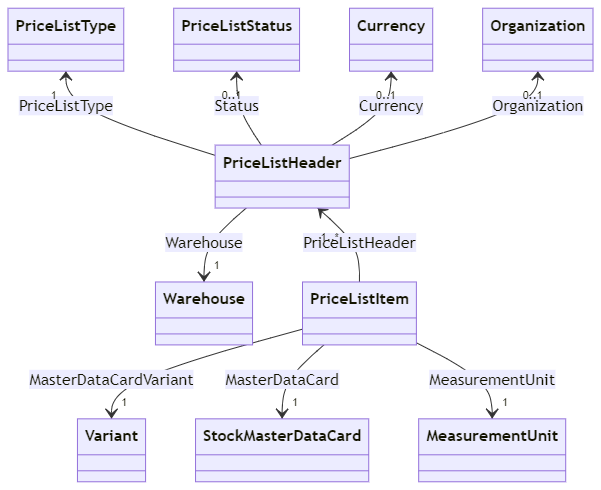

  • description: dependencies related to warehouse price list
  • typical source: external images/warehouse_pricelist.png

Data models

Discount​

Class diagram

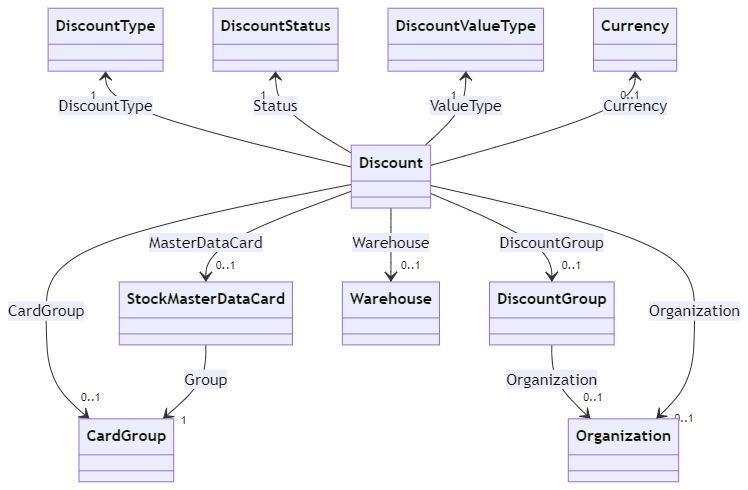

  • description: discounts for organization, warehouse card and so on
  • typical source: external images/warehouse_discount.png

Data models

Inventory​

Class diagram

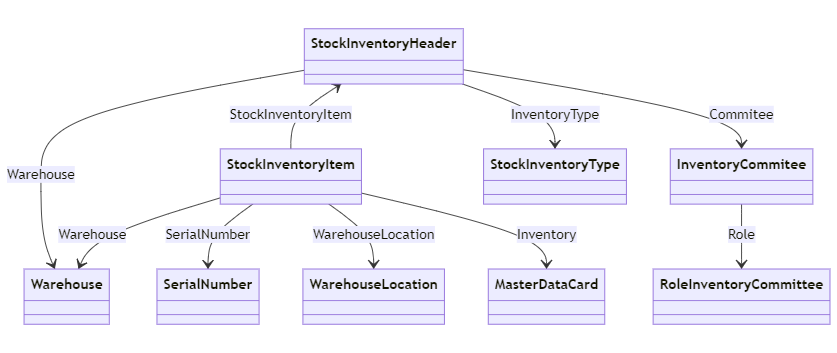

  • description: warehouse inventory
  • typical source: external images/warehouse_discount.png

Data models

Issued Order​

Class diagram

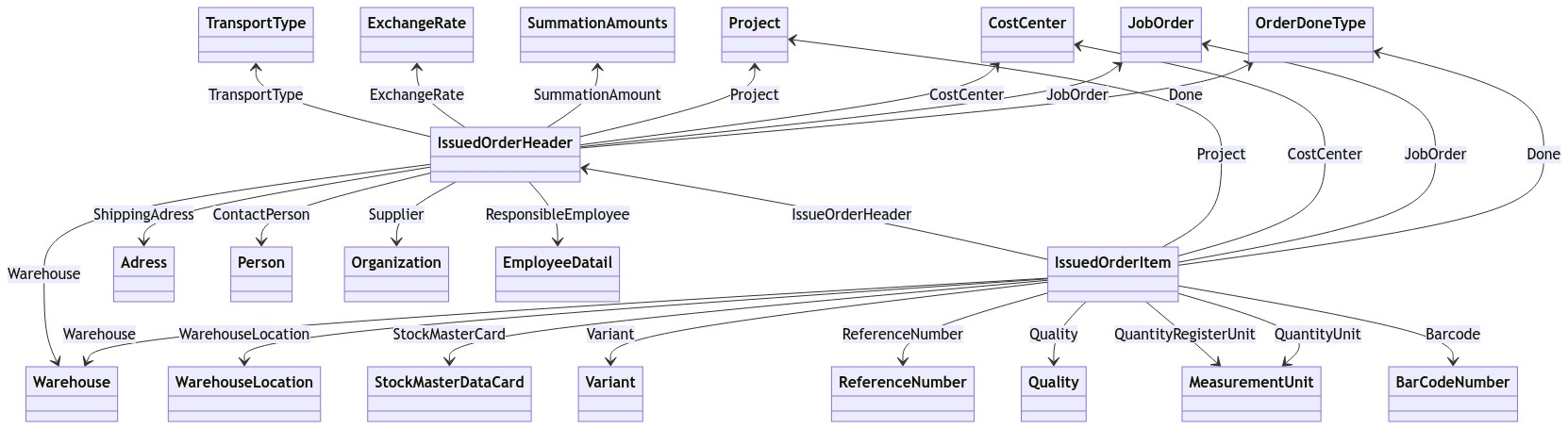

  • description: warehouse Issued Order
  • typical source: external images/warehouse_discount.png

Data models

Received Order​

Class diagram

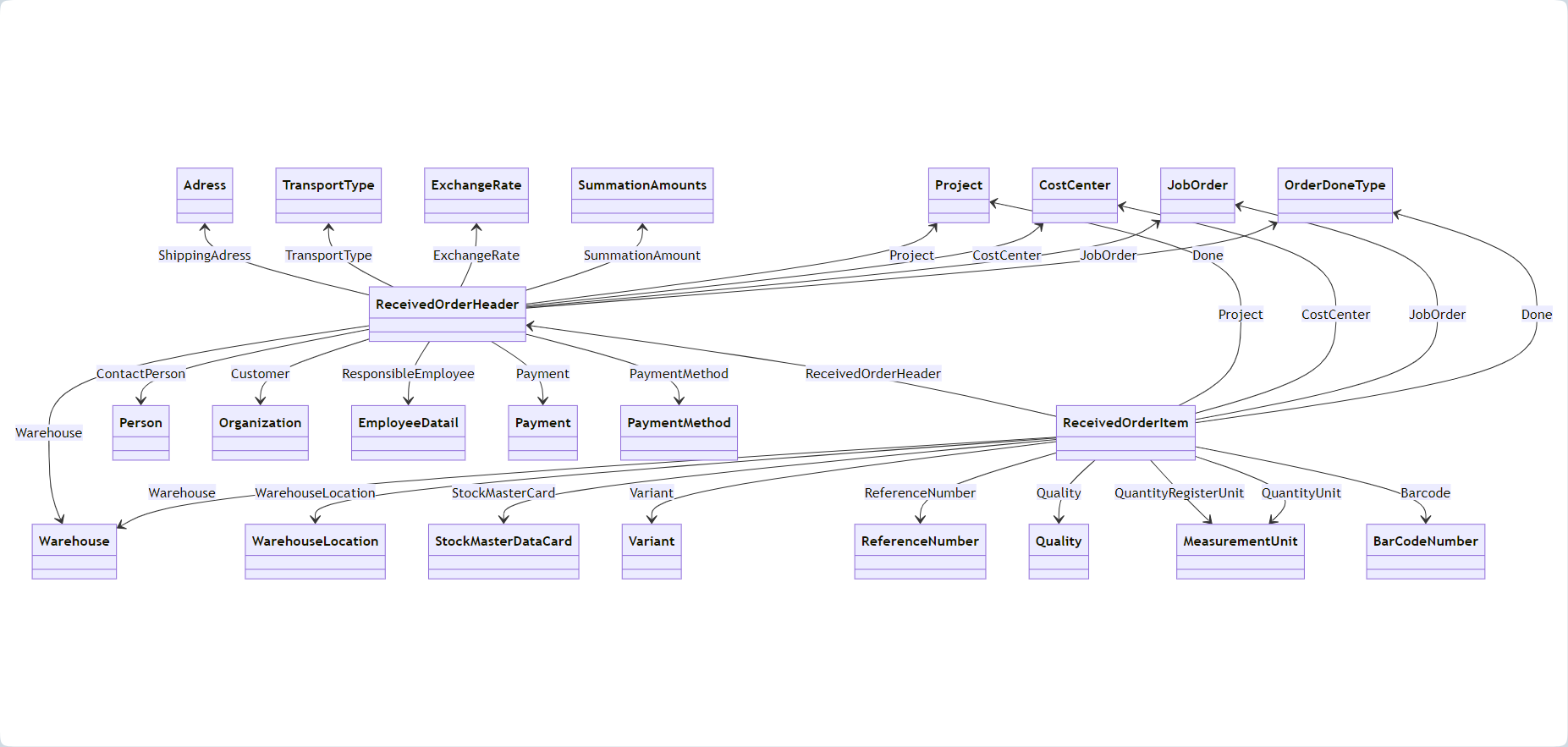

  • description: warehouse Received Order
  • typical source: external images/warehouse_discount.png

Data models

Stock Receiving​

Class diagram

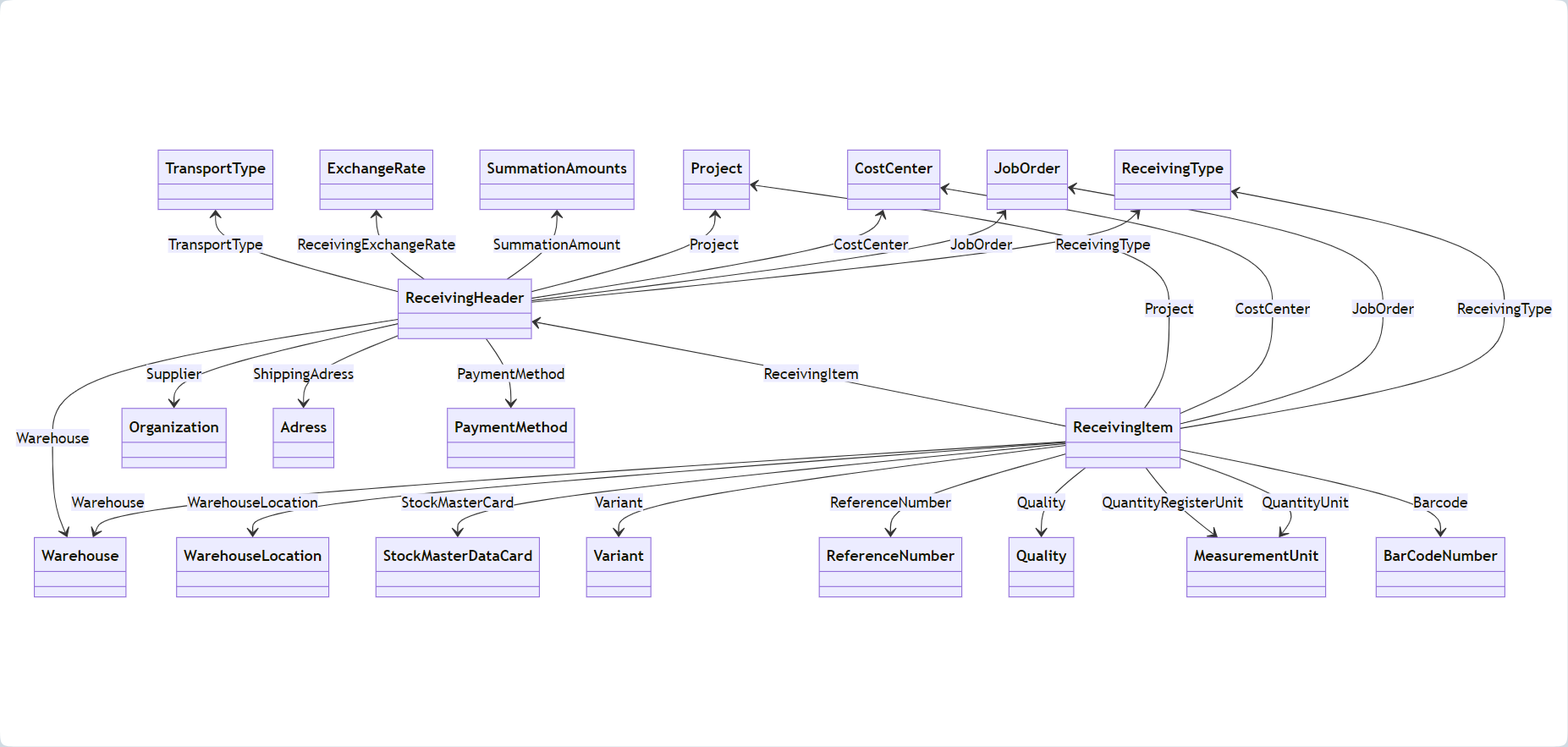

  • description: warehouse Stock Receiving
  • typical source: external images/warehouse_discount.png

Data models

Warehouse Closure​

Class diagram

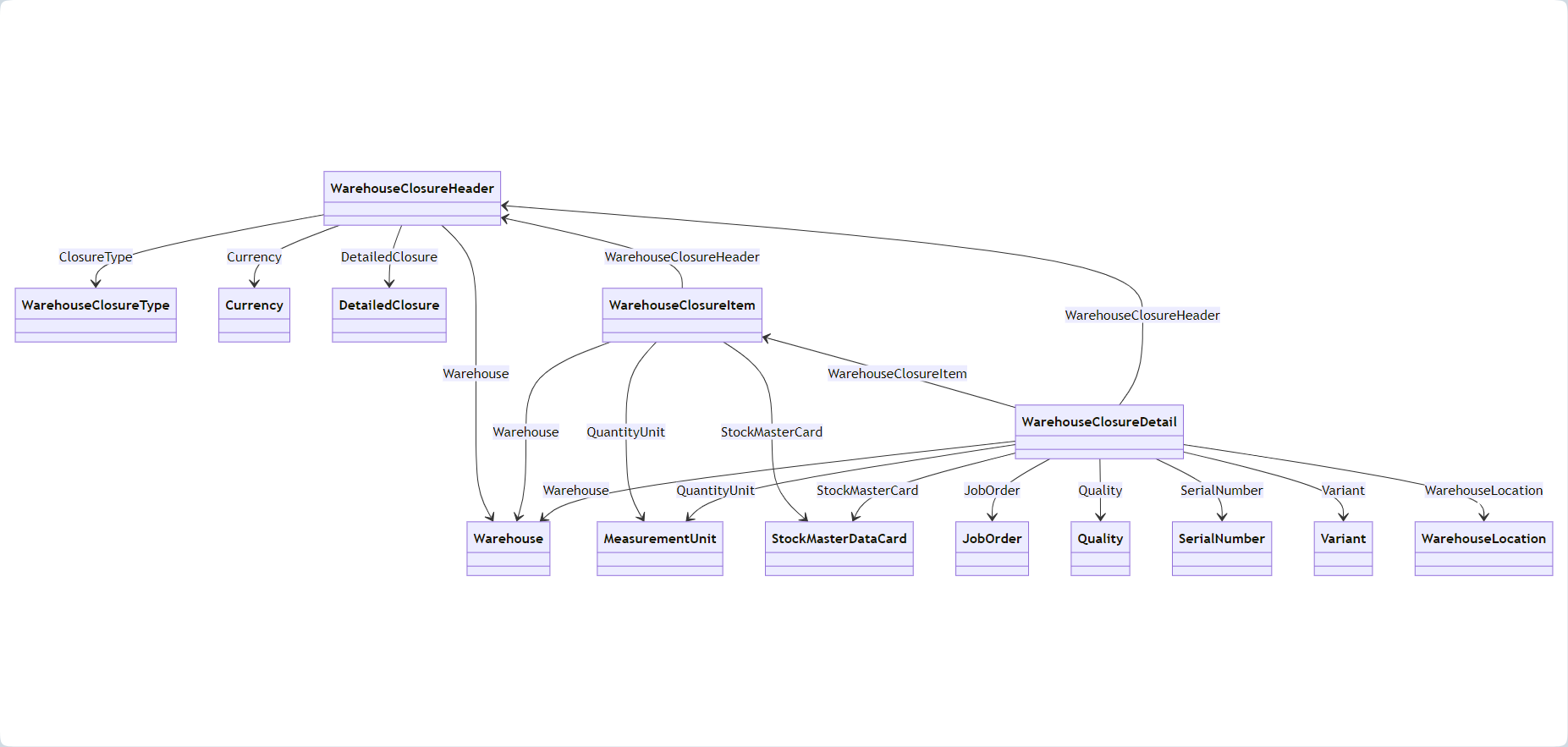

  • description: warehouse Warehouse Closures
  • typical source: external images/warehouse_discount.png

Data models
